TUBELED_40 II RGB-W Power, 1040 mm (40,94“), 24V DC
€616.60*
| Accessories total price | €0.00 |
€616.60 *
Available downloads

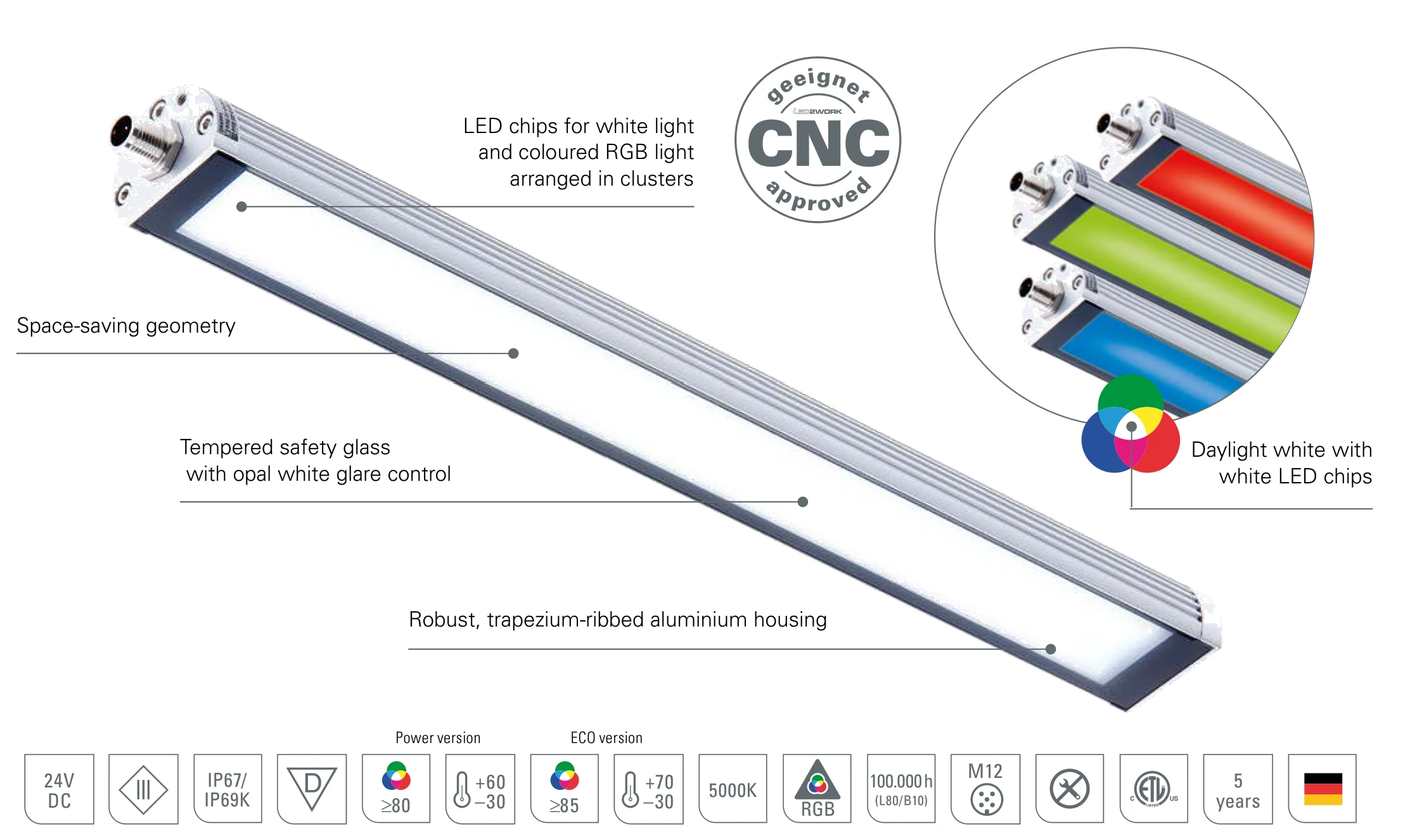

The LED hybrid luminaire for lighting and signalling is available as a power-optimised ECO version and as a luminous flux-optimised power version. The luminaire has a flat design only and is suitable for CNC. On the one hand, the luminaire convinces with powerful illumination of working areas and on the other hand, it has a signalling function by flashing or changing the light colour. In this way, for example, changes of state in the working areas of machines and systems can be signalled in colour.
| Order number: | 118590-01 |
|---|---|
| Model: | TUBELED_40 II RGB-W Power |
| Type: | LED surface-mounted light |
| Illuminant: | SMD RGB-W Cluster LED |
| Power consumption white: | ~38 W |
| White lamp luminous flux: | 4860 lm |
| Lamp luminous efficiency: | ~126 lm/W |
| Power consumption RED: | ~36 W |
| Lamp luminous flux RED: | 960 lm |
| Power consumption GREEN: | ~10 W |
| Lamp luminous flux GREEN: | 1380 lm |
| Power consumption BLUE: | ~36 W |
| Lamp luminous flux BLUE: | 600 lm |
| Light distribution: | Light Forming Technolology |
| Colour rendering WHITE (Ra): | >80 |
| Supply voltage: | 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W) |
| Connection (connector): | M12 A-coded |
| Number of poles: | 5 |
| Degree of protection: | IP67/IP69K |
| Class of protection: | III |
| Glare control: | diffused safety glass |
| Beam angle (optics): | 100° |
| Operating temperature: | -30 °C - +60 °C (-22 °F - 140 °F) |
| Storage temperature: | -30 °C - +80 °C (-22 °F - 176 °F) |
| Lamps lifetime: | > 100,000 h (L80/B10) |
| Housing material: | aluminium |
| Cover material: | tempered glass, shatterproof |
| Height [B] x Width [C]: | 29 mm x 40 mm (~1,14“ x ~1,57“) |
| Length [A]: | 1040 mm (~40,94“) |
| Weight (net): | 1350 g (~48 oz) |
| Gross weight: | 1650 g (~58 oz) |
| Risk group (DIN EN 62471): | Free group |
| Markings: | CE, UKCA, ETL Listed (5003529), D mark |
| Mounting accessories: | Optional |
| Made in: | Germany |
| Feature: | RGB-W: Illumination and beacon in one light |
