INROLED 50 CleanPro RGB-W, 305 mm (~12,01“), 24 V DC
INROLED 50 CleanPro RGB-W, 305 mm (~12,01“), 24 V DC
€226.50*
| Accessories total price | €0.00 |
In stock 17 in stock
€226.50 *

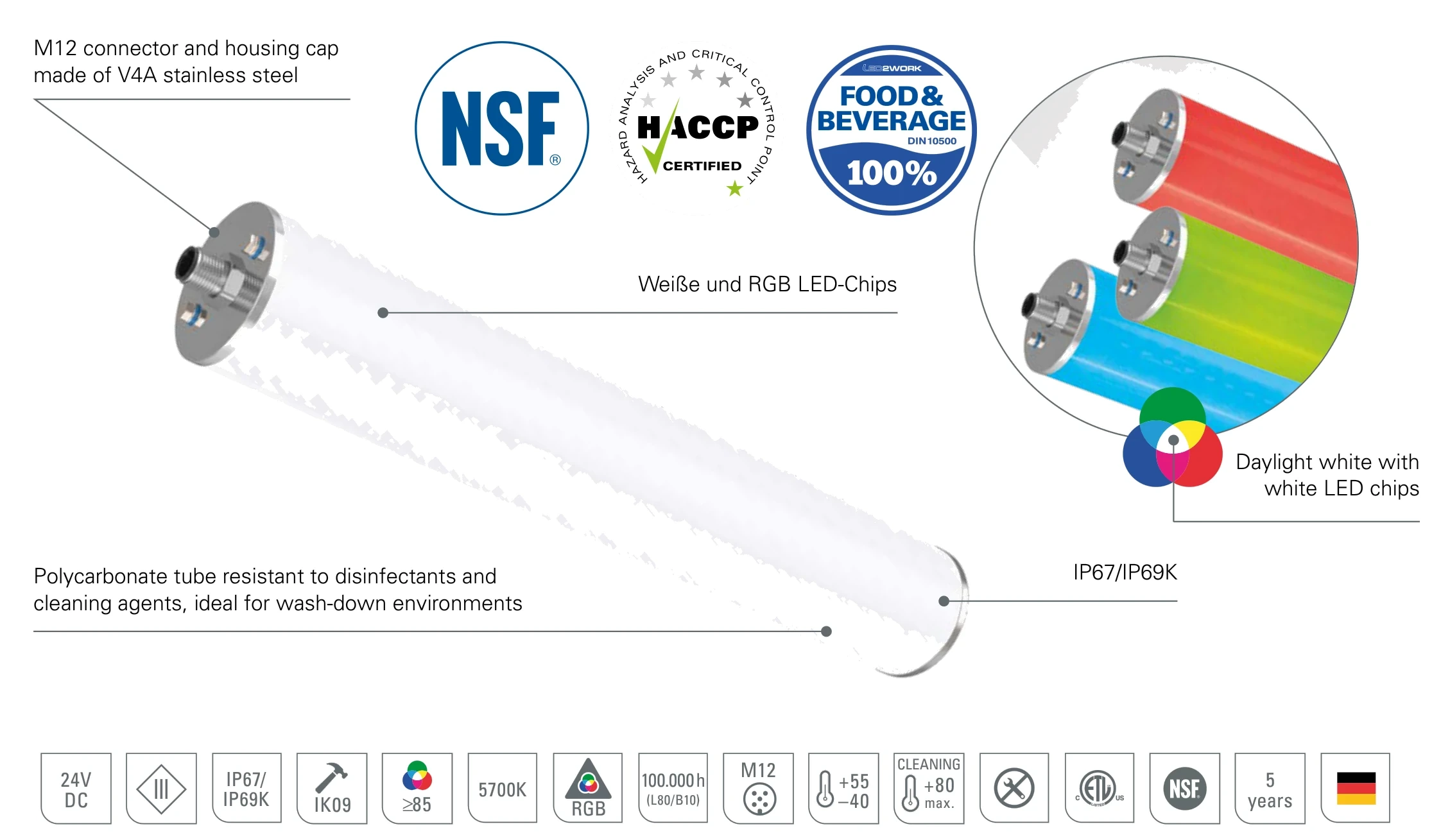

Working light and signal colours for food production: The INROLED 50 CleanPro RGB-W combines white light and RGB signalling in one hygienic luminaire – Ecolab-, NSF- and HACCP-certified.
The closed, smooth tube shape gives dirt hardly any hold – a hygienic design for use above production and filling lines.
- Fewer components: White working light and RGB signalling from one luminaire – saves space, wiring and cost.
- Hygiene on record: Ecolab, NSF and HACCP certification – suitability for food & beverage is documented, not just promised.
- Takes every cleaning cycle: IP67/IP69K – dust-tight, watertight and resistant to high-pressure cleaning.
- Maintenance? Practically never: > 100,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
This variant: 305 mm length, connection 24 V DC.
Temperature data
| Operating temperature: | -40 °C - +55 °C (mehrere Farben +35 °C) |
|---|---|
| Cleaning temperature: | Up to max. +80 °C (+176 °F) (light off) |
| Storage temperature: | -30 °C - +80 °C (-22 °F - 176 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| ETL Listed: | listed |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Glare control: | opal white |
|---|---|
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | SMD RGB-W Cluster LED |
| Colour rendering WHITE (Ra): | >85 |
| Power consumption BLUE: | ~9,1 W |
| Power consumption GREEN: | ~2,5 W |
| Power consumption RED: | ~9,6 W |
| Power consumption white: | ~9,6 W |
| Lamp luminous efficiency: | 126 lm/W |
| Lamp luminous flux BLUE: | 150 lm |
| Lamp luminous flux GREEN: | 355 lm |
| Lamp luminous flux RED: | 240 lm |
| White lamp luminous flux: | 1215 lm |
| Light colour white: | 5700K 3-step MacAdam |
| Lamps lifetime: | > 100.000 h (L80/B10) |
| Beam angle (optics): | 100° |
| Light colour: | Daylight white, RGB / Colour |
| Colour temperature: | 5700 K |
| Colour rendering (CRI): | Ra ≥ 80, Ra ≥ 85 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Connection (connector): | M12 A-coded |
| Supply voltage: | 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W) |
Dimensions & housing
| Housing material: | Tube – Polycarbonate, matt, shatterproof with Ecolab coating | Cap/M12 connector – V4A stainless steel |
|---|---|
| Type: | LED tube luminaire |
| Height [B] x Width [C]: | Ø 50 mm (~1,97“) |
| Length [A]: | 305 mm (~12,01“) |
| Weight (net): | 560 g (~20 oz) |
| Gross weight: | 705 g (~25 oz) |
| Degree of protection (IP): | IP67, IP69K |
Further technical data
| Order number: | 158090-01 |
|---|---|
| Model: | INROLED 50 CleanPro RGB-W |
| Number of poles: | 5 |
| impact resistance: | IK09 |
| Made in: | Germany |
| Feature: | Suitable for F&B use: Ecolab, NSF, and HACCP certified |
| Note: | RGB-W: Beleuchten und Signalisieren in einer Leuchte |
Energy efficiency
| Contained light source(s) – energy efficiency class: | E |
|---|---|
| Spectrum of available classes: | D–E |
| EPREL registration number(s): | 777963 |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the colour temperature mean?
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
