UNILED SL RGB-W, 295 mm (11,61“), 24V DC
UNILED SL RGB-W, 295 mm (11,61“), 24V DC
€175.60*
| Accessories total price | €0.00 |
In stock 15 in stock
€175.60 *

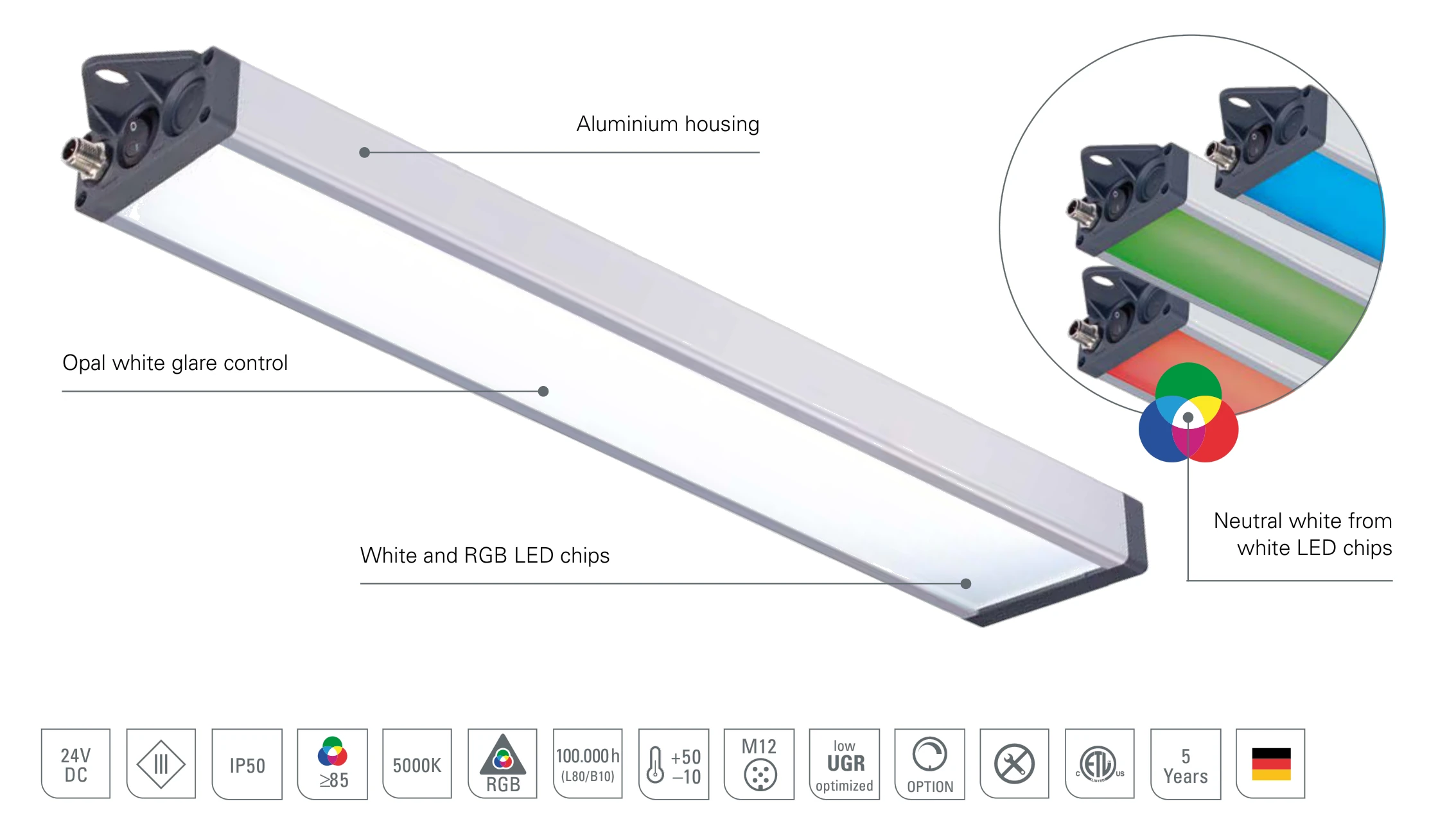

Lighting and signalling in one luminaire: The UNILED SL RGB-W combines white working light with RGB signal colours – process status becomes visible right at the workplace, no extra signal tower needed.
White light for the work, defined colours for the status: the slim system luminaire replaces the combination of a working light and a separate signal light above the workplace.
- Fewer components: Working light and status display from one luminaire – saves space, wiring and cost.
- One system, four lengths: 295 to 1545 mm – the right light for any workplace width.
- Made for indoor use: IP50 – dust-protected above workplace and assembly line.
- Maintenance? Practically never: > 100,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
This variant: 295 mm length, connection 24 V DC.
Temperature data
| Operating temperature min. (°C): | -10 °C (+14 °F) |
|---|---|
| Operating temperature max. (°C): | +50 °C (+122 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| ETL Listed: | listed |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Glare control: | opal white |
|---|---|
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | RGB SMD + SMD LED |
| Colour rendering WHITE (Ra): | >80 |
| Power consumption BLUE: | ~9 W |
| Power consumption GREEN: | ~2,5 W |
| Power consumption RED: | ~9 W |
| Power consumption white: | ~9,5 W |
| Lamp luminous efficiency: | 126 lm/W |
| Lamp luminous flux BLUE: | 150 lm |
| Lamp luminous flux GREEN: | 355 lm |
| Lamp luminous flux RED: | 240 lm |
| White lamp luminous flux: | 1215 lm |
| Light colour white: | 5000K 3-step MacAdam |
| Lamps lifetime: | > 100.000 h (L80/B10) |
| Beam angle (optics): | 100° |
| Light colour: | Neutral white, RGB / Colour |
| Colour temperature: | 5000 K |
| Colour rendering (CRI): | Ra ≥ 80 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Connection (connector): | M12 A-coded |
| Supply voltage: | 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W) |
Dimensions & housing
| Housing material: | aluminium |
|---|---|
| Cover material: | plastic soft |
| Type: | LED system and workplace light |
| Height [B] x Width [C]: | 35 mm x 85 mm (~1,38“ x ~3,35“) |
| Length [A]: | 295 mm (~11,61“) |
| Weight (net): | 550 g (~19 oz) |
| Gross weight: | 850 g (~30 oz) |
| Mounting accessories: | Optional |
| Degree of protection (IP): | IP50 |
Further technical data
| Order number: | 110994-11 |
|---|---|
| Model: | UNILED SL RGB-W |
| Made in: | Germany |
| Feature: | RGB-W: Illumination and beacon in one light |
Energy efficiency
| Contained light source(s) – energy efficiency class: | E |
|---|---|
| EPREL registration number(s): | 777963 |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the colour temperature mean?
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
