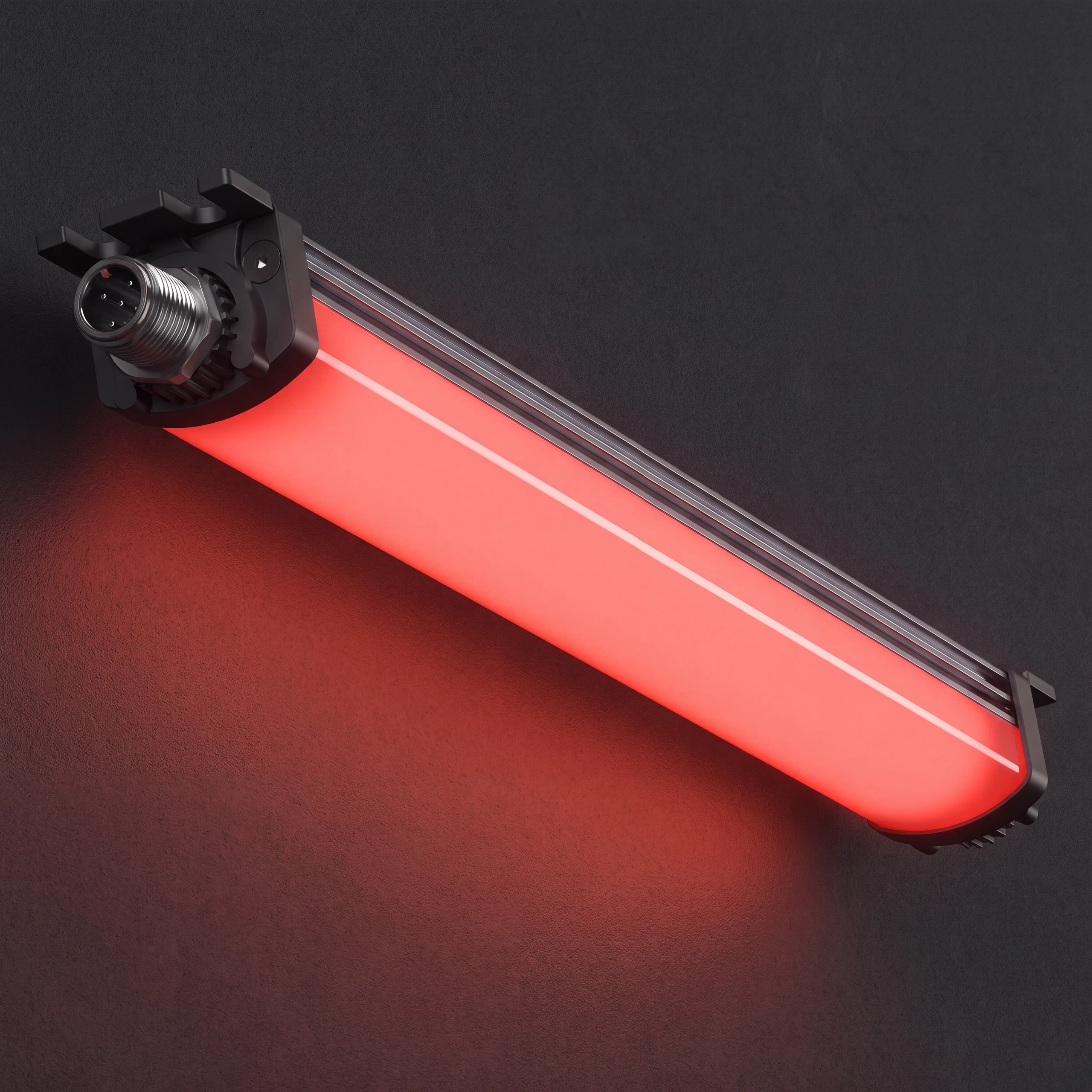

SIGNALED II RGB, 260 mm (~10,24“)
SIGNALED II RGB, 260 mm (~10,24“)
€90.00*
| Accessories total price | €0.00 |
In stock 111 in stock
€90.00 *
Machine status made visible – along the full length of the light: The SIGNALED II RGB turns a slim LED luminaire into a large-area signal display: steady light or flashing in RGB colours shows from afar what the machine or line is doing.
The rugged polycarbonate housing with IP54 protection keeps out dust and splash water – made for continuous duty right at machines and plants.
- Clear instead of ambiguous: Signalling via flashing and/or coloured light – operating states are recognisable instantly, even at a distance.
- Mounted in minutes: Two pairs of brackets are already included – unpack, fix, connect.
- Rugged in continuous duty: Polycarbonate housing and IP54 – insensitive to dust and splash water.
- Maintenance? Practically never: > 100,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
This variant: 260 mm length, connection 24 V DC.
Temperature data
| Operating temperature min. (°C): | -10 °C (+14 °F) |
|---|---|
| Operating temperature max. (°C): | +50 °C (+122 °F) |
Conformity & markings
| D mark: | Yes |
|---|---|
| WEEE reg. no.: | DE 38003906 |
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| ETL Listed: | listed |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Glare control: | opal white |
|---|---|
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | RGB LED |
| Power consumption BLUE: | ~1,44 W |
| Power consumption GREEN: | ~0,96 W |
| Power consumption RED: | ~1,44 W |
| Lamp luminous flux BLUE: | 55 lm |
| Lamp luminous flux GREEN: | 168 lm |
| Lamp luminous flux RED: | 91 lm |
| Lamps lifetime: | > 100.000 h (L80/B10) |
| Dimmable: | No |
| Beam angle (optics): | 120° |
| Light colour: | RGB / Colour |
| Colour temperature: | RGB |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Connection (connector): | M12 A-coded |
| Supply voltage: | 24V DC - 10% +7% (RGB) |

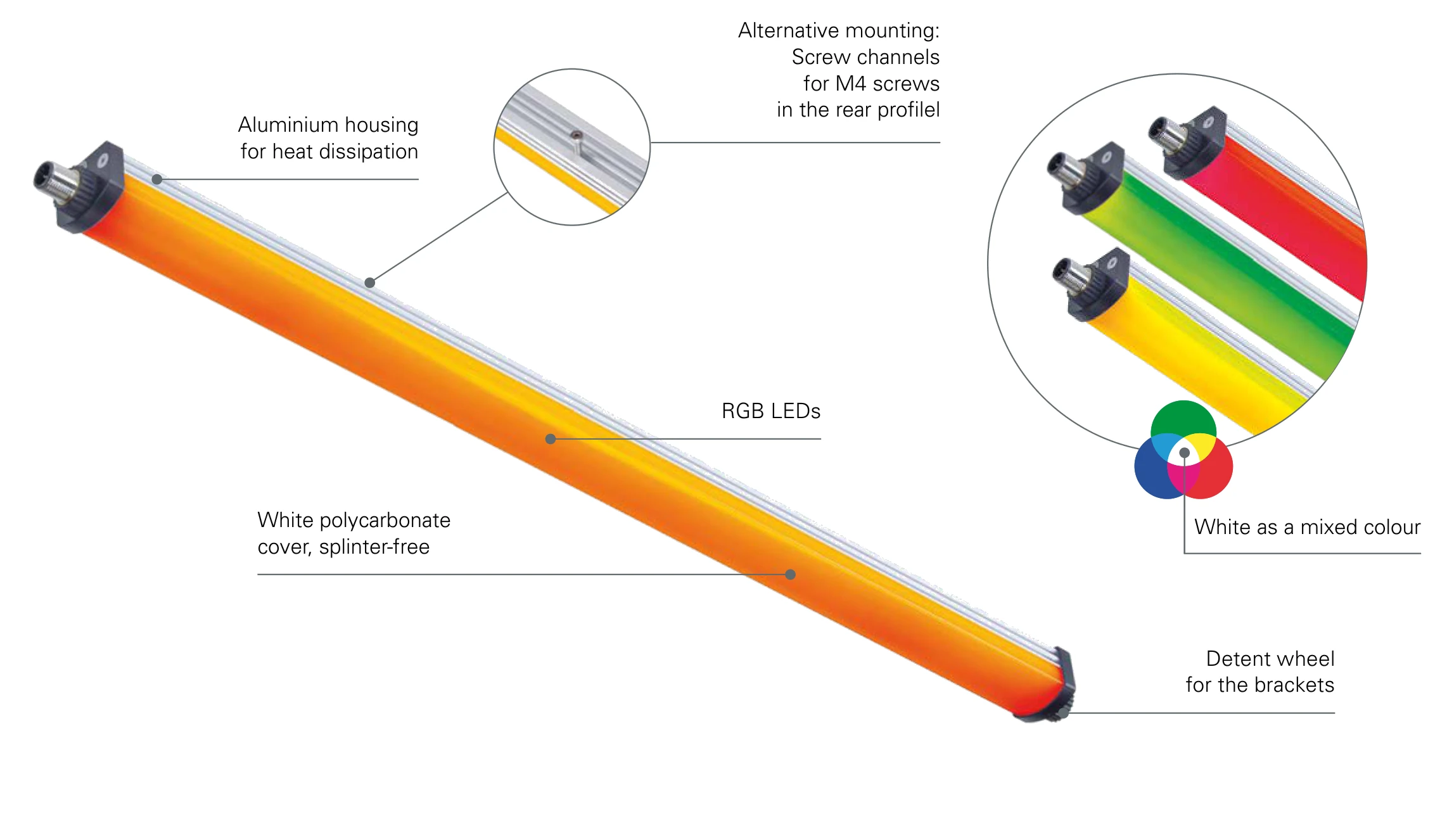

Dimensions & housing
| Housing material: | aluminium |
|---|---|
| Cover material: | Polycarbonat |
| Type: | LED surface-mounted luminaire |
| Height [B] x Width [C]: | 25 mm x 30 mm (~0,98“ x ~1,18“) |
| Length [A]: | 260 mm (~10,24“) |
| Weight (net): | 230 g (~8 oz) |
| Gross weight: | 280 g (~10 oz) |

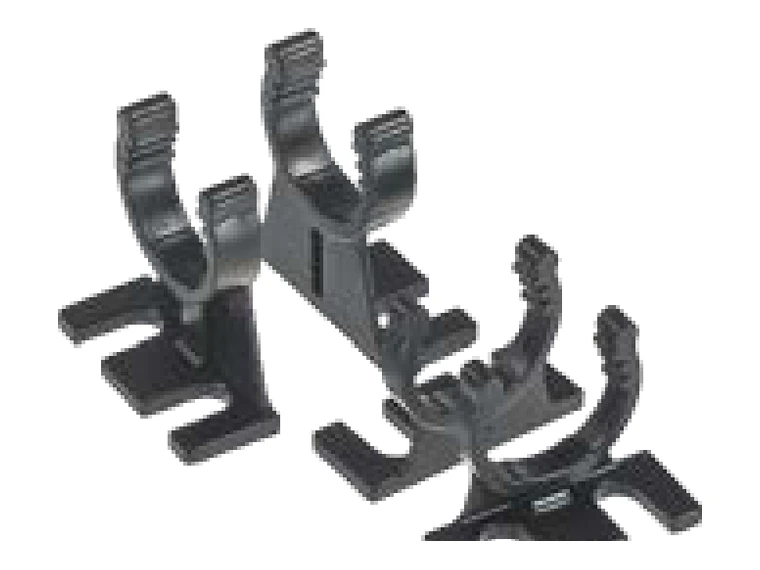

| Mounting accessories: | 2 pairs mounting holders (holder for swivel or planar moun-ting) in delivery scope |
| Degree of protection (IP): | IP54 |
Further technical data
| Order number: | 111090-12 |
|---|---|
| Model: | SIGNALED II RGB |
| Made in: | Germany |
| Feature: | Signalling via flashing and/or coloured light |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
