TUBELED_25 RGB-W, IO-Link, 705 mm (27,76“), 24V DC

Skip image gallery
3 available

€305.00*

Content: 1 piece
Accessories total price €0.00

Prices excl. VAT plus shipping costs

further versions
Accessories

Accessories total price

€305.00 *

Stk
Product number: 154490-11
EAN: 4260556626284

Available downloads

Sales Guide (0.04 MB)
Data sheet (0.64 MB)
IODD Manual (0.12 MB)
CAD Download (Link to download)

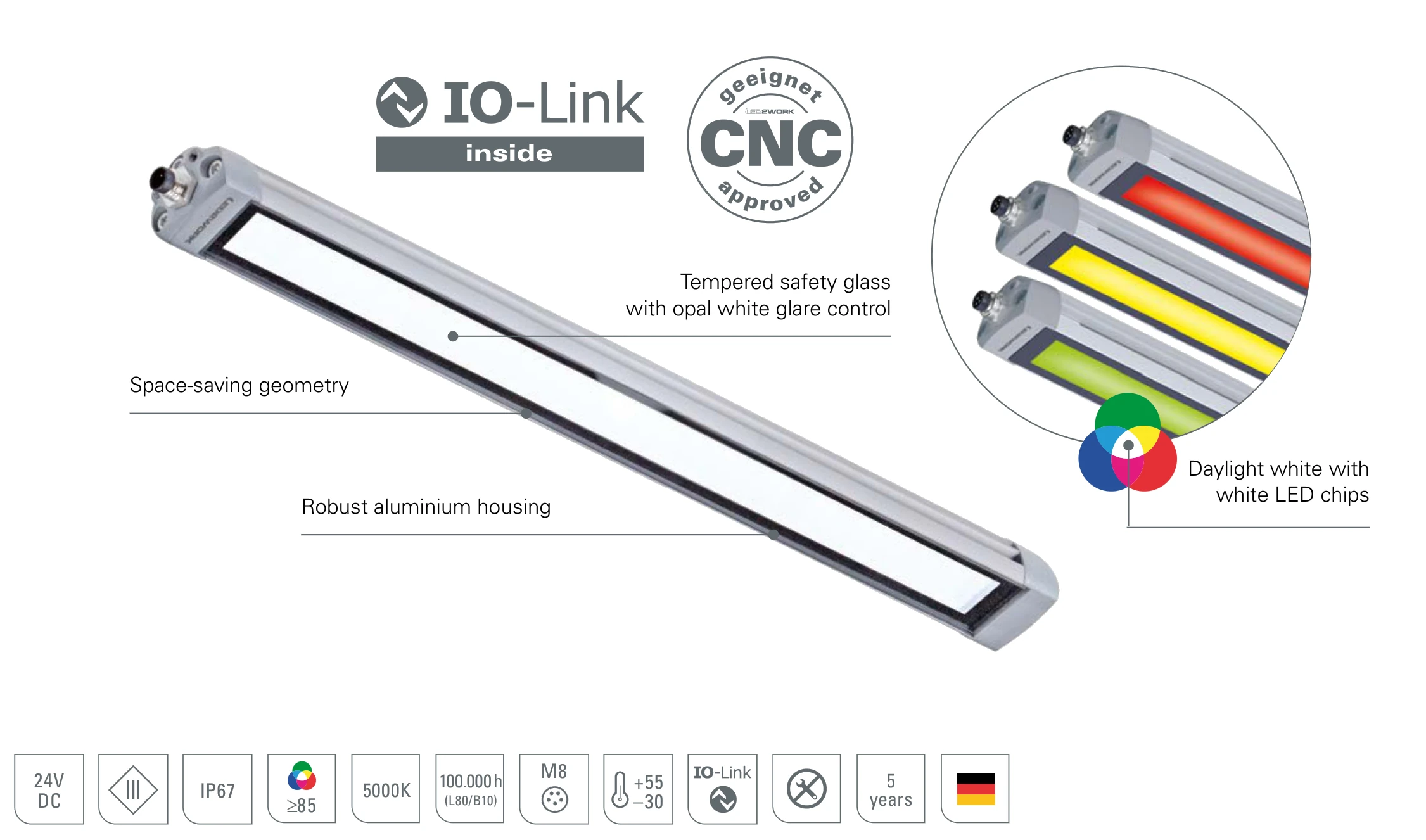

Surface-mounted LED luminaire TUBELED_25 RGB-W, IO-Link, 705 mm (27,76“), 24V DC, RGB-W LED chips in clusters, white light: 5000K 3-step MacAdam, only approx. 23 mm mounting height, length 705 mm (~27,76“), protection rating IP67 - therefore dust and liquid-tight, suitable for machines and systems as well as areas in automation and infrastructure.

LED hybrid luminaire for lighting and signaling: The TUBELED_25 RGB-W, IO-Link, 705 mm (27,76“), 24V DC was developed for lighting and as a signaling device for technical systems, automation and machine tools of the next IoT generation. The luminaire is very slim, has a low profile and is suitable for tight installation situations. With shatterproof tempered glass, aluminum housing and the associated high degree of protection, the LED luminaire is ideal for illuminating work areas on CNC machines and automation systems.

Properties "TUBELED_25 RGB-W, IO-Link, 705 mm (27,76“), 24V DC"
Order number: 154490-11
Model: TUBELED_25 RGB-W IO-Link
Type: LED surface-mounted light
Illuminant: SMD LED RGB + W
Power consumption white: ~19,2 W
White lamp luminous flux: 3065 lm
Lamp luminous efficiency: 160 lm/W
Power consumption RED: ~5,8 W
Lamp luminous flux RED: 368 lm
Power consumption GREEN: ~3,8 W
Lamp luminous flux GREEN: 672 lm
Power consumption BLUE: ~5,8 W
Lamp luminous flux BLUE: 224 lm
Light distribution: Direct
Light colour white: 5000K 3-step MacAdam
Colour rendering WHITE (Ra): >85
Supply voltage: 24 V DC -5 / +10% [LEDs], 24 V DC +/- 25% [IO-Link communication]
Maximum power consumption White: 900 mA
Maximum current consumption Colors: 290 mA
Connection (connector): M8 A-coded
Degree of protection: IP67
Class of protection: III
Glare control: diffused safety glass
Beam angle (optics): 100°
Operating temperature: -30 °C - +55 °C (-22 °F - 131 °F)
Storage temperature: -30 °C - +80 °C (-22 °F - 176 °F)
Lamps lifetime: > 100,000 h (L80/B10)
Housing material: aluminium
Cover material: tempered glass, shatterproof
Height [B] x Width [C]: ~23 mm x ~28 mm (~0,91“ x ~1,1“)
Length [A]: 705 mm (~27,76“)
Weight (net): 150 g (~5 oz)
Gross weight: 750 g (~26 oz)
Risk group (DIN EN 62471): Free group
Markings: CE, UKCA, ETL Listed (5003529)
Mounting accessories: Optional
Made in: Germany
Feature: Only one light for illumination and signaling, IO-Link
