SYSTEMLED EVO PIR - ECO, 4000K, 1782 mm (~70,16“)
SYSTEMLED EVO PIR - ECO, 4000K, 1782 mm (~70,16“)
€489.50*
| Accessories total price | €0.00 |
This item will be available again soon!
€489.50 *
Notify me when available again
This item is currently out of stock. Leave your email address — we will notify you automatically as soon as it is available again.

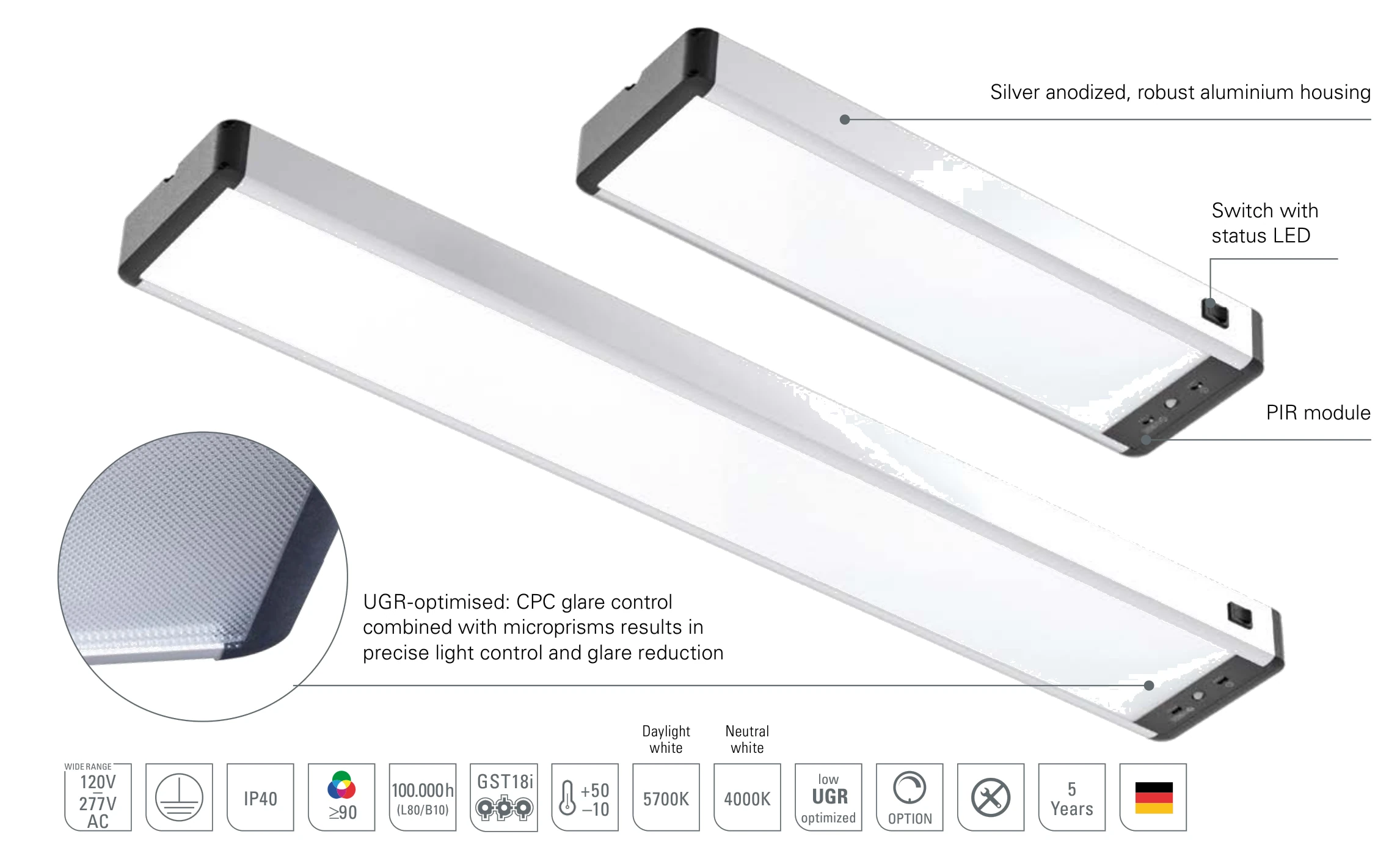

Light that thinks along: The SYSTEMLED EVO PIR combines precise workstation light with very high colour rendering and an integrated PIR motion sensor – at intermittently occupied workstations, the light is only on when someone is actually working there.
Developed for indoor use (IP40): above the assembly workstation, along the production line or in the laboratory – wherever visual tasks demand precision, this luminaire plays to its strengths.
- Neutral white and flicker-free: Light colour 4000 K with colour rendering Ra >90 (typ. 95) – balanced, pleasant light for focused work throughout the whole shift.
- Saves energy automatically: The integrated PIR motion sensor switches the light as needed – ideal for intermittently occupied workstations and zones.
- Straight to the mains: AC connection AC 100–277 V – no external power supply, no 24 V infrastructure required.
- Savings every shift: 173 lm/W efficacy – maximum brightness from minimal power consumption.
- Maintenance? Practically never: > 100,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
This variant: 1782 mm length, 7960 lm luminous flux at ~46 W power consumption, light colour 4000 K, connection AC 100–277 V.
Temperature data
| Operating temperature min. (°C): | -10 °C (+14 °F) |
|---|---|
| Operating temperature max. (°C): | +50 °C (+122 °F) |
| Storage temperature min. (°C): | -20 °C (-4 °F) |
| Storage temperature max. (°C): | +80 °C (+176 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption: | ~46 W |
|---|---|
| Glare control: | Microprisms |
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | SMD LED |
| Lamp luminous flux: | 7960 lm |
| Lamp luminous efficiency: | 173 lm/W |
| Lamps lifetime: | > 100.000 h (L80/B10) |
| Dimmable: | Optional via accessories |
| Beam angle (optics): | 90° |
| Light colour: | Neutral white |
| Colour temperature: | 4000 K |
| Colour rendering (CRI): | Ra ≥ 80, Ra ≥ 85, Ra ≥ 90 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | I |
|---|---|
| Power supply: | Integrated |
| Total output incl. driver: | ~51 W |
| Connection (connector): | Wieland GST18 |
| Supply voltage: | 120-277V AC ± 10%, 50-60 Hz |
Dimensions & housing
| Housing material: | aluminum and PMMA |
|---|---|
| Type: | LED system light |
| Height [B] x Width [C]: | 48 mm x 139 mm (~1,89“ x ~5,47“) |
| Length [A]: | 1782 mm (~70,16“) |
| Weight (net): | 4700 g (~166 oz) |
| Gross weight: | 6580 g (~232 oz) |
| Mounting accessories: | Optional |
| Degree of protection (IP): | IP40 |
Further technical data
| Order number: | 155420-04 |
|---|---|
| Model: | SYSTEMLED EVO PIR - ECO Neutral White |
| Made in: | Germany |
Energy efficiency
| Contained light source(s) – energy efficiency class: | C |
|---|---|
| EPREL registration number(s): | 2192510 |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the colour temperature mean?
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
