TUBELED_40 II ECO, 540 mm (21,26“), cascadable
TUBELED_40 II ECO, 540 mm (21,26“), cascadable
€188.60*
| Accessories total price | €0.00 |
In stock 95 in stock
€188.60 *
Bright light, low consumption: The TUBELED_40 II ECO delivers daylight white machine light at particularly low power consumption – the economical choice for lights that run every shift.

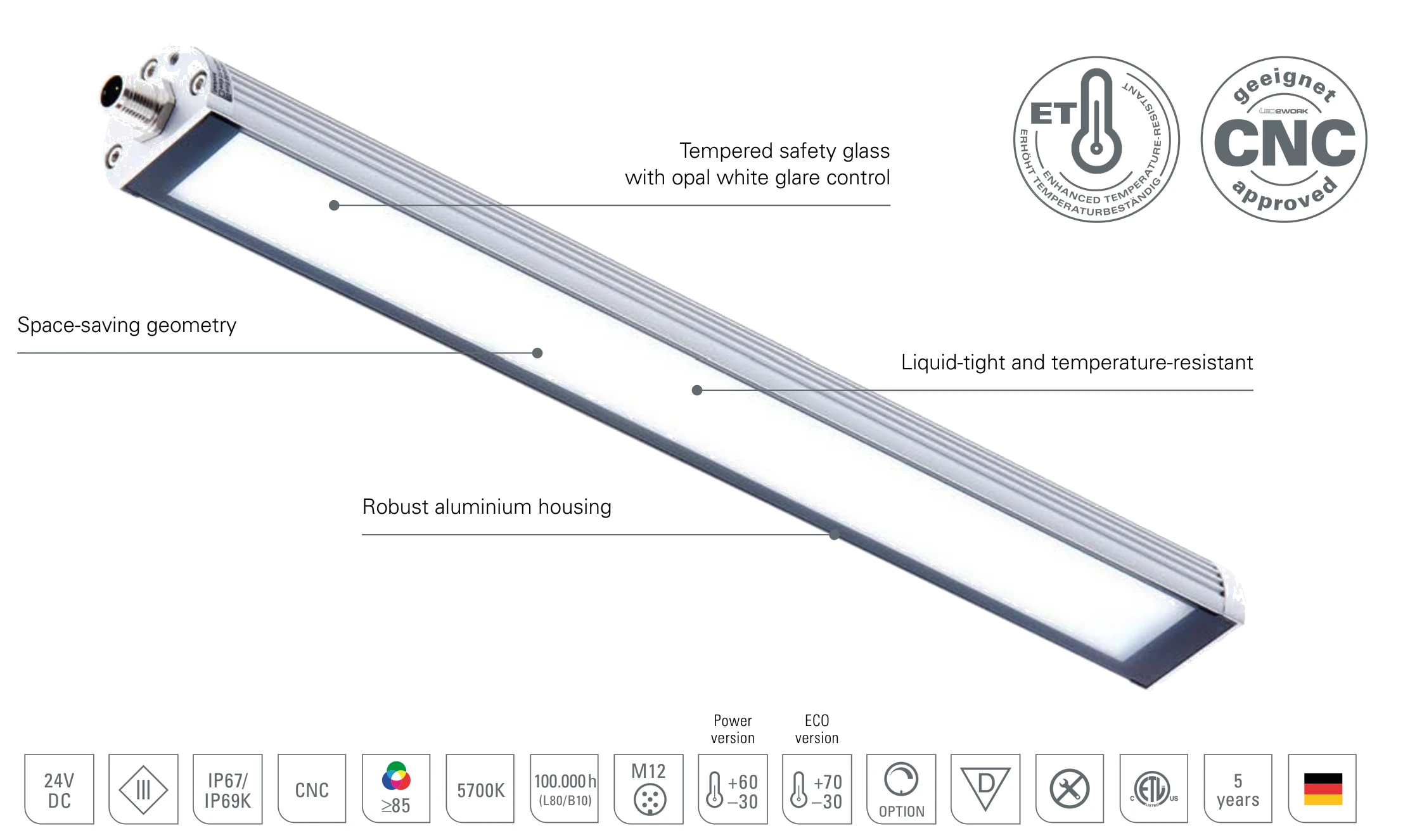

The rugged tube design with a solid safety-glass cover and IP67 protection is built for rough everyday duty on machine tools – sealed against dust, oils and cooling lubricants.
- Grows with the job: Cascadable – several luminaires become one continuous light line with a single supply lead.
- Takes the heat: High-temperature-resistant design – reliable even in warm mounting positions right at the machine.
- Oil, coolant and flying chips? No problem: IP67 protection and a safety-glass cover – resistant to oils and cooling lubricants, safe against chip impact.
- Fatigue-free work: Flicker-free daylight white light (5700 K) with colour rendering Ra >85 – edges, contours and surfaces stay clearly visible.
- Maintenance? Practically never: > 100,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
- Savings every shift: ~173 lm/W efficacy – maximum brightness from minimal power consumption.
This variant: 540 mm length, 2250 lm luminous flux at ~13 W power consumption.
Temperature data
| Operating temperature min. (°C): | -30 °C (-22 °F) |
|---|---|
| Operating temperature max. (°C): | +70 °C (+158 °F) |
| Storage temperature min. (°C): | -30 °C (-22 °F) |
| Storage temperature max. (°C): | +80 °C (+176 °F) |
Conformity & markings
| D mark: | Yes |
|---|---|
| WEEE reg. no.: | DE 38003906 |
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| ETL Listed: | listed |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption: | ~13 W |
|---|---|
| Glare control: | Diffuser, tempered glass |
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | SMD LED |
| Lamp luminous flux: | 2250 lm |
| Lamp luminous efficiency: | ~173 lm/W |
| Lamps lifetime: | > 100.000 h (L80/B10) |
| Dimmable: | Optional via accessories |
| Beam angle (optics): | 100° |
| Light colour: | Daylight white |
| Colour temperature: | 5700 K |
| Colour rendering (CRI): | Ra ≥ 80, Ra ≥ 85 |
| Light distribution: | Light Forming Technology |
Electrical data
| Class of protection: | III |
|---|---|
| Connection (connector): | M12 A-coded |
| Supply voltage: | 24V DC ± 10% |
Dimensions & housing
| Housing material: | aluminium |
|---|---|
| Cover material: | tempered glass, 4 mm (0,16“) |
| Type: | LED surface-mounted luminaire for machines |
| Height [B] x Width [C]: | 29 mm x 40 mm (~1,14“ x ~1,57“) |
| Length [A]: | 540 mm (~21,26“) |
| Weight (net): | 650 g (~23 oz) |
| Gross weight: | 900 g (~32 oz) |
| Mounting accessories: | Optional |
| cascadable: | yes |
| Degree of protection (IP): | IP67, IP69K |
Further technical data
| Order number: | 118310-12 |
|---|---|
| Model: | TUBELED_40 II ECO, Cascadeable |
| Vibration resistance: | At 10 to 55 Hz (amplitude 0.35 mm (~0,01“)) |
| Shock resistance: | Up to 50 g (~2 oz) |
| Made in: | Germany |
| Feature: | resistant to high temperatures, cascadable |
Energy efficiency
| Contained light source(s) – energy efficiency class: | C |
|---|---|
| Spectrum of available classes: | C–D |
| EPREL registration number(s): | 775850, 775858 |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the colour temperature mean?
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
