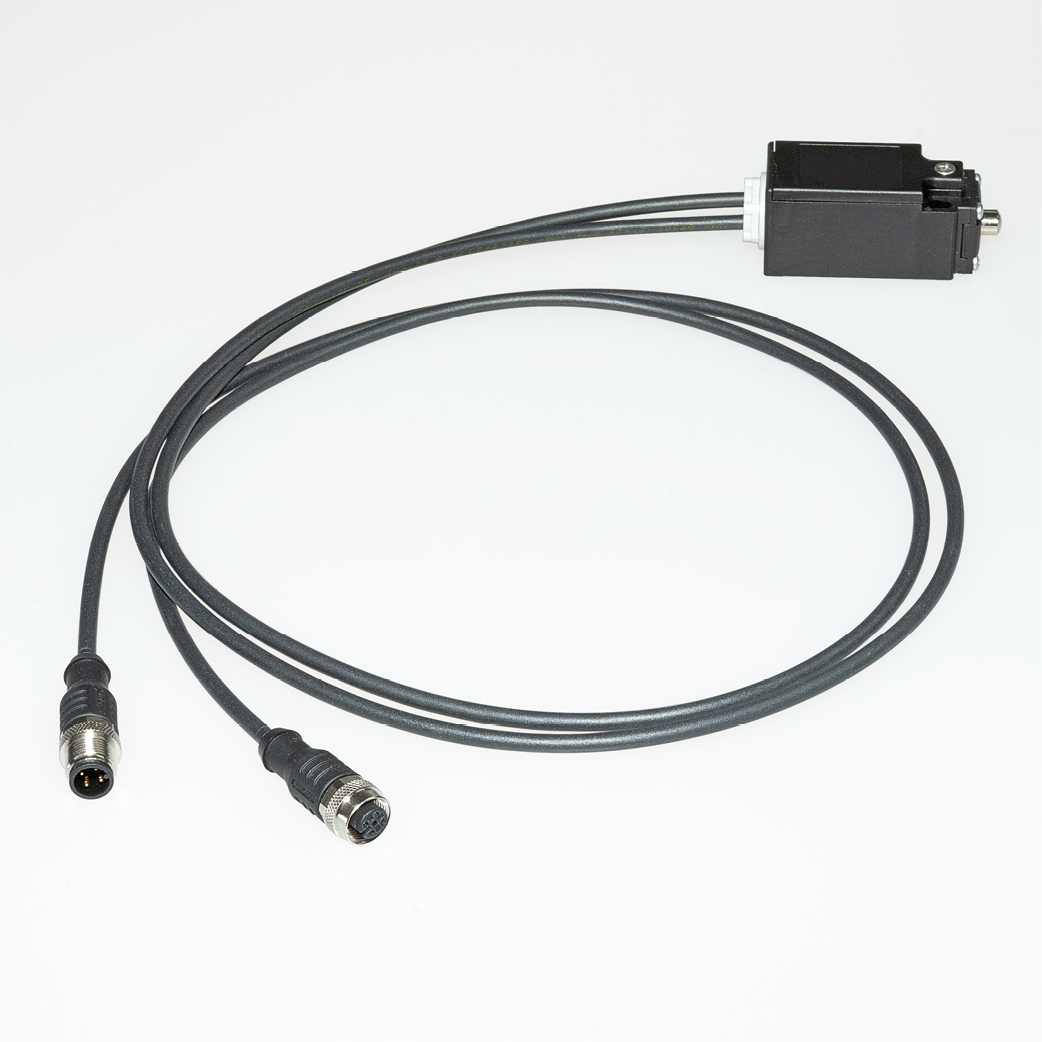

Door contact switch M12 plug/socket
Door contact switch M12 plug/socket
Item no.
210800-01
EAN
4260556626321
210800-01
Reliably monitor doors and flaps: The door contact switch reliably reports the position of doors and flaps in industrial applications – compact and with a fast M12 connection.
For position monitoring of doors and flaps; designed as a Pizzato FR 501-M2 with 1 NC contact.
- Reliable feedback: 1 NC contact signals the open or closed state.
- Quickly wired: M12 connection, 4-pole – plug in instead of clamping.
- Industrial-grade: compact design for rough plant operation.
Properties "Door contact switch M12 plug/socket"
Temperature data
| Operating temperature min. (°C): | -10 °C (+14 °F) |
|---|---|
| Operating temperature max. (°C): | +60 °C (+140 °F) |
Electrical data
| Connection type: | M12 |
|---|
Dimensions & housing
| Type: | Pizzato FR 501-M2 |
|---|---|
| Protection class (mounting): | IP65 |
| Cable length: | 1 m (~3,28 ft.) |
| Degree of protection (IP): | IP65 |
Further technical data
| Order number: | 210800-01 |
|---|---|
| Model: | Door contact switch |
| Suitable for: | 24V DC lights |
| Wire cross-section: | 0,34 mm² |
| Mechanical life: | 20 million switching cycles |
| Operating voltage: | 24 V DC |

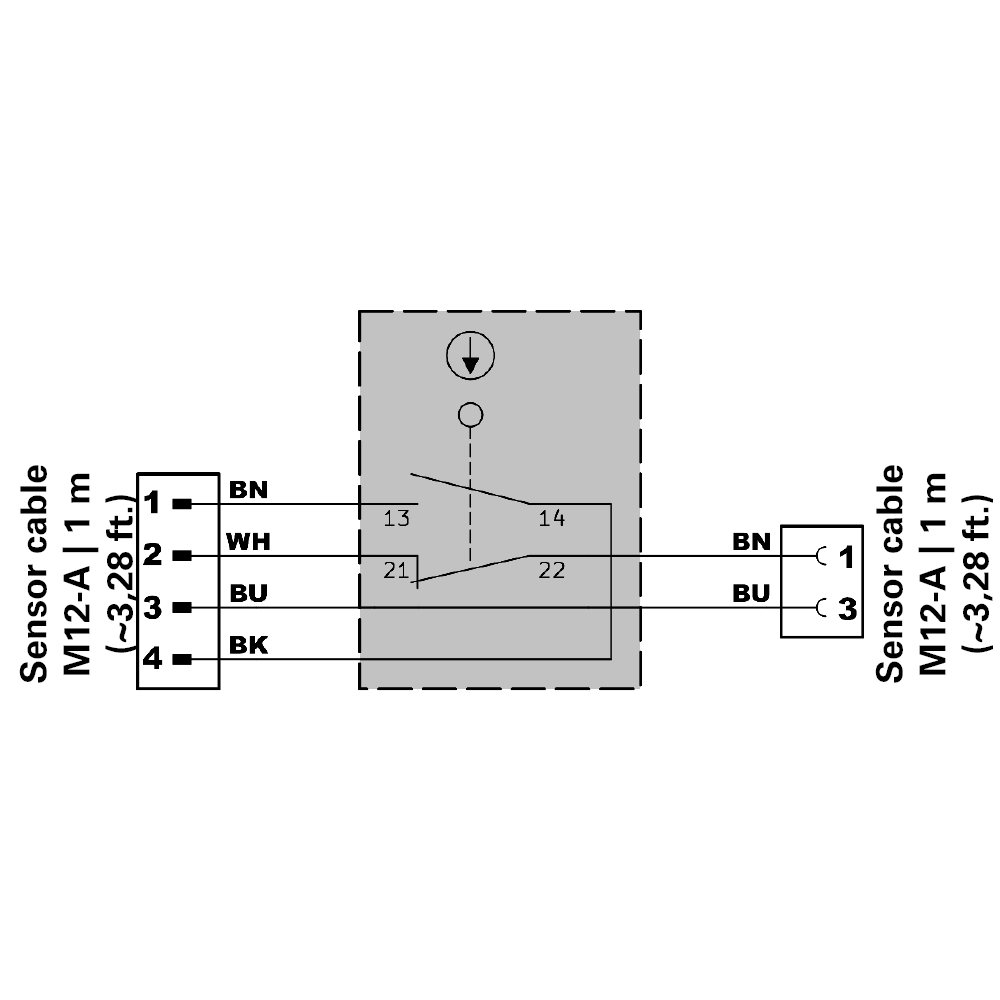

| Number of poles: | 4 |
| Certifications: | See manufacturer link |
| Note: | Contacts - 1 NO + 1 NCFurther details – see manufacturer link |
| Manufacturer datasheet: | https://www.pizzato.com/en/catalog/FR501M2.html |
