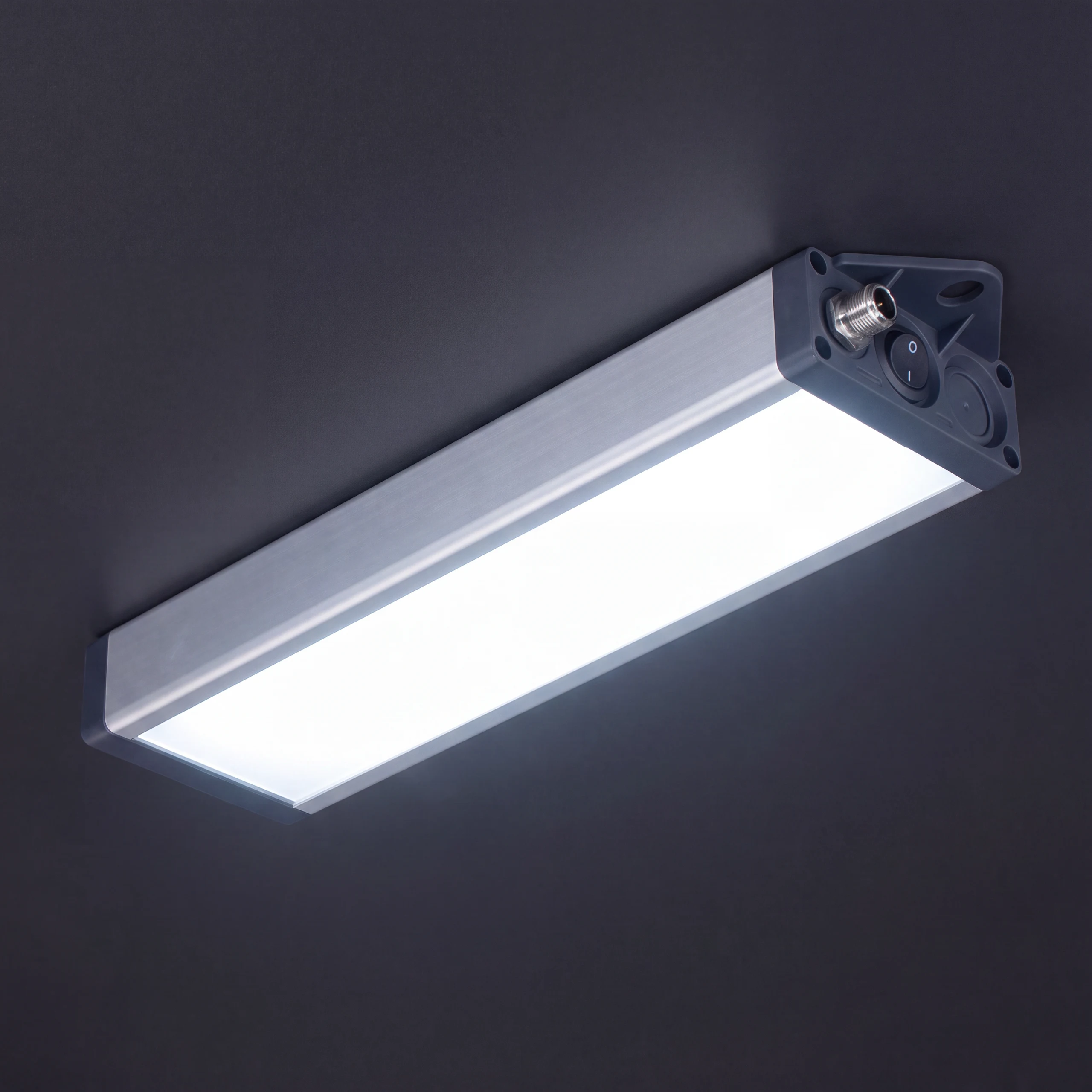

UNILED SL, 295 mm (11,61“), 24V DC, opal white cover
Skip image gallery
83 available
IP50
5700 K
12 W
155 lm/W
€118.10*
Content:
1 piece
| Accessories total price | €0.00 |
further versions
Accessories
Accessories total price
€118.10 *
Product number:
110914-11
EAN:
4260556620312
Available downloads
Data sheet
(0.33 MB)
Operating instructions
(2.22 MB)
CAD Download
(Link to download)
LED workplace luminaire UNILED SL, IP50, aluminium and plastic housing with integrated mounting brackets, 100° optics, Daylight White, opal white glare control, 24V DC
Lighting for soft, motivating daylight at the workplace:
The UNILED SL is an ergonomic LED luminaire not only for system workstations. The luminaire comes with high light output and very good colour rendering as well as homogeneous, glare-free illumination due to the opal white glare control. Whether as lighting for test stations, individual workstations or assembly stations: wherever a system luminaire with 24V and UL/CSA certification is needed, the UNILED SL is the first choice.
Lighting for soft, motivating daylight at the workplace:
The UNILED SL is an ergonomic LED luminaire not only for system workstations. The luminaire comes with high light output and very good colour rendering as well as homogeneous, glare-free illumination due to the opal white glare control. Whether as lighting for test stations, individual workstations or assembly stations: wherever a system luminaire with 24V and UL/CSA certification is needed, the UNILED SL is the first choice.
Properties "UNILED SL, 295 mm (11,61“), 24V DC, opal white cover"
Temperature data
| Betriebstemperatur min. (°C): | -10 °C (+14 °F) |
|---|---|
| Betriebstemperatur max. (°C): | +60 °C (+140 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| ETL Listed: | listed |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption: | ~12 W |
|---|---|
| Glare control: | opal white |
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | SMD LED |
| Lamp luminous flux: | 1899 lm |
| Lamp luminous efficiency: | ~155 lm/W |
| Lamps lifetime: | > 100,000 h (L80/B10) |
| Dimmable: | Optional via accessories |
| Beam angle (optics): | 100° |
| Light colour: | Daylight white |
| Colour temperature: | 5700 K |
| Colour rendering (CRI): | Ra ≥ 80, Ra ≥ 85 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Connection (connector): | M12 A-coded |
| Supply voltage: | 24V DC ± 10% |
Dimensions & housing
| Housing material: | Aluminium |
|---|---|
| Cover material: | plastic soft |
| Type: | LED system and workplace light |
| Height [B] x Width [C]: | 35 mm x 85 mm (~1,38“ x ~3,35“) |
| Length [A]: | 295 mm (~11,61“) |
| Weight (net): | 550 g (~19 oz) |
| Gross weight: | 850 g (~30 oz) |
| Mounting accessories: | Optional |
| Degree of protection (IP): | IP50 |
Further technical data
| Order number: | 110914-11 |
|---|---|
| Model: | UNILED SL DC |
| Made in: | Germany |
| Feature: | homogeneous lighting, shadow- and glare-free |
