SYSTEMLED SurfaceOne, 472 mm (~18,58“), 3-flames
SYSTEMLED SurfaceOne, 472 mm (~18,58“), 3-flames
€519.50*
| Accessories total price | €0.00 |
1 available
Only 1 left 1 in stock
€519.50 *

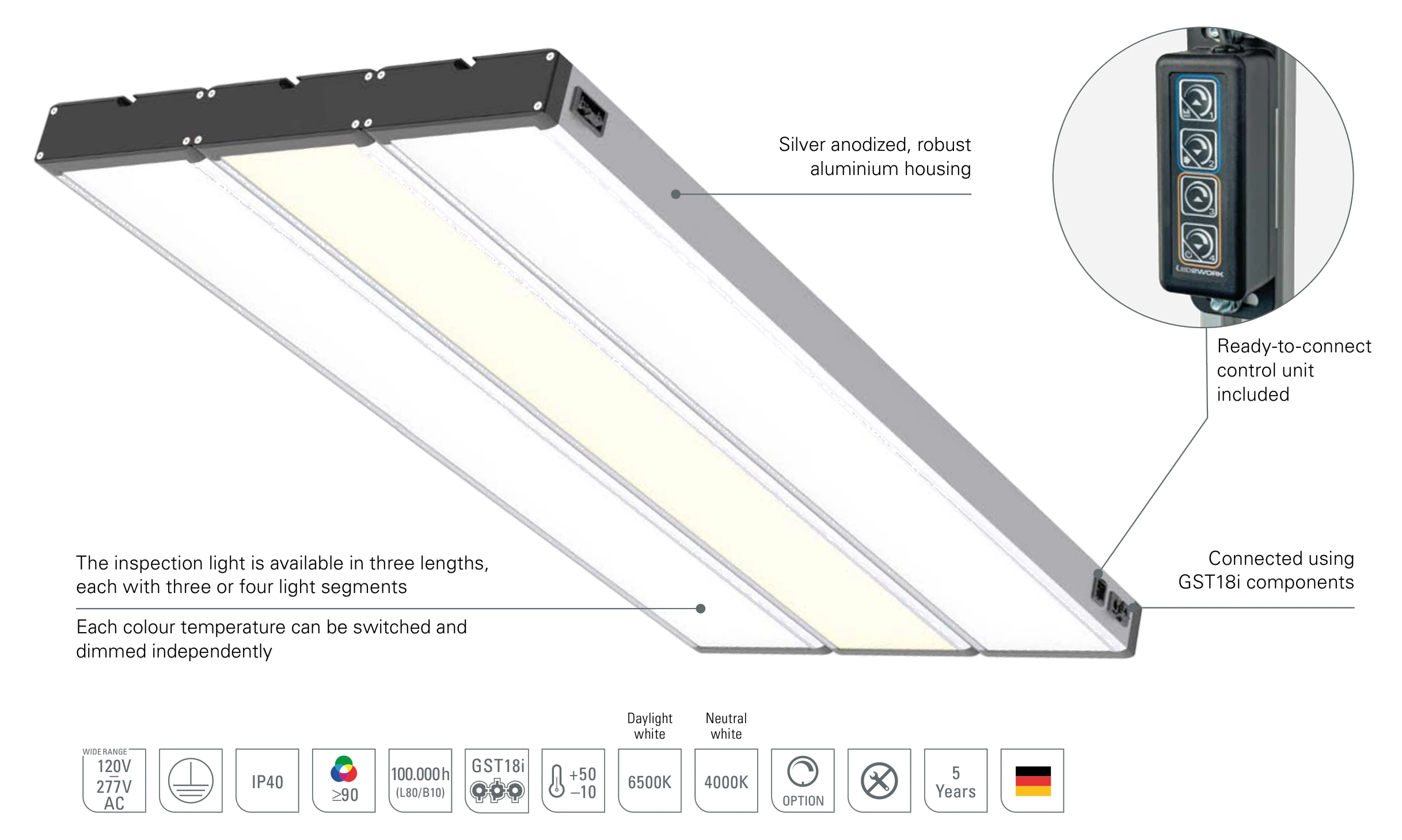

Two light colours, full power: The SYSTEMLED SurfaceOne brings multi-lamp LED light with switchable light colour to the system workstation – dimmable, externally switchable and with very high colour rendering for demanding visual tasks.
Developed for indoor use (IP40): above the assembly workstation, along the production line or in the laboratory – wherever visual tasks demand precision, this luminaire plays to its strengths.
- Light colour to match the task: 4000 K + 6500 K in one luminaire – switchable to suit the visual task, with colour rendering Ra >90 (typ. 95).
- Integrated into your controls: Externally dimmable and switchable – the luminaire follows your workstation or line control.
- Straight to the mains: AC connection AC 100–277 V – no external power supply, no 24 V infrastructure required.
- Savings every shift: 186 lm/W efficacy – maximum brightness from minimal power consumption.
- Maintenance? Practically never: > 100,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
This variant: 472 mm length, 9924 lm luminous flux at ~54.6 W power consumption, light colour 4000 K + 6500 K, connection AC 100–277 V.
Temperature data
| Operating temperature min. (°C): | -10 °C (+14 °F) |
|---|---|
| Operating temperature max. (°C): | +45 °C (+113 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption: | ~54,6 W |
|---|---|
| Glare control: | Microprisms |
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | SMD LED |
| Lamp luminous flux: | 9924 lm |
| Lamp luminous efficiency: | 186 lm/W |
| Lamps lifetime: | > 100.000 h (L80/B10) |
| Dimmable: | Driver included in the delivery scope |
| Beam angle (optics): | 90° |
| Light colour: | Tunable white |
| Colour temperature: | 4000 K + 6500 K |
| Colour rendering (CRI): | Ra ≥ 80, Ra ≥ 85, Ra ≥ 90 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | I |
|---|---|
| Power supply: | Integrated |
| Total output incl. driver: | ~60 W |
| Connection (connector): | Wieland GST18 |
| Supply voltage: | 120-277V AC ± 10%, 50-60 Hz |
Dimensions & housing
| Housing material: | aluminum and PMMA |
|---|---|
| Type: | LED system light |
| Height [B] x Width [C]: | 48 mm x 417 mm (~1,89“ x ~16,42“) |
| Length [A]: | 472 mm (~18,58“) |
| Weight (net): | 4946 g (~174 oz) |
| Gross weight: | 7446 g (~263 oz) |
| Mounting accessories: | Optional |
| Degree of protection (IP): | IP40 |
Further technical data
| Order number: | 155570-01 |
|---|---|
| Model: | SYSTEMLED SurfaceOne - 6.5-4-6.5 |
| R9: | 90 |
| UGR: | < 22 |
| PWM frequency: | ~4,9kHz |
| Made in: | Germany |
| Feature: | externally dimmable/switchable |
Energy efficiency
| Contained light source(s) – energy efficiency class: | C |
|---|---|
| EPREL registration number(s): | 2192510 |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
