CENALED SPOT DC, Flexarm
Skip image gallery
79 available
€197.20*
Content:
1 piece
| Accessories total price | €0.00 |
further versions
Accessories
Accessories total price
€197.20 *
Product number:
121012-01
EAN:
4260556623719
Available downloads
Operating instructions
(2.48 MB)
CAD Download
(Link to download)
Data sheet
(0.63 MB)

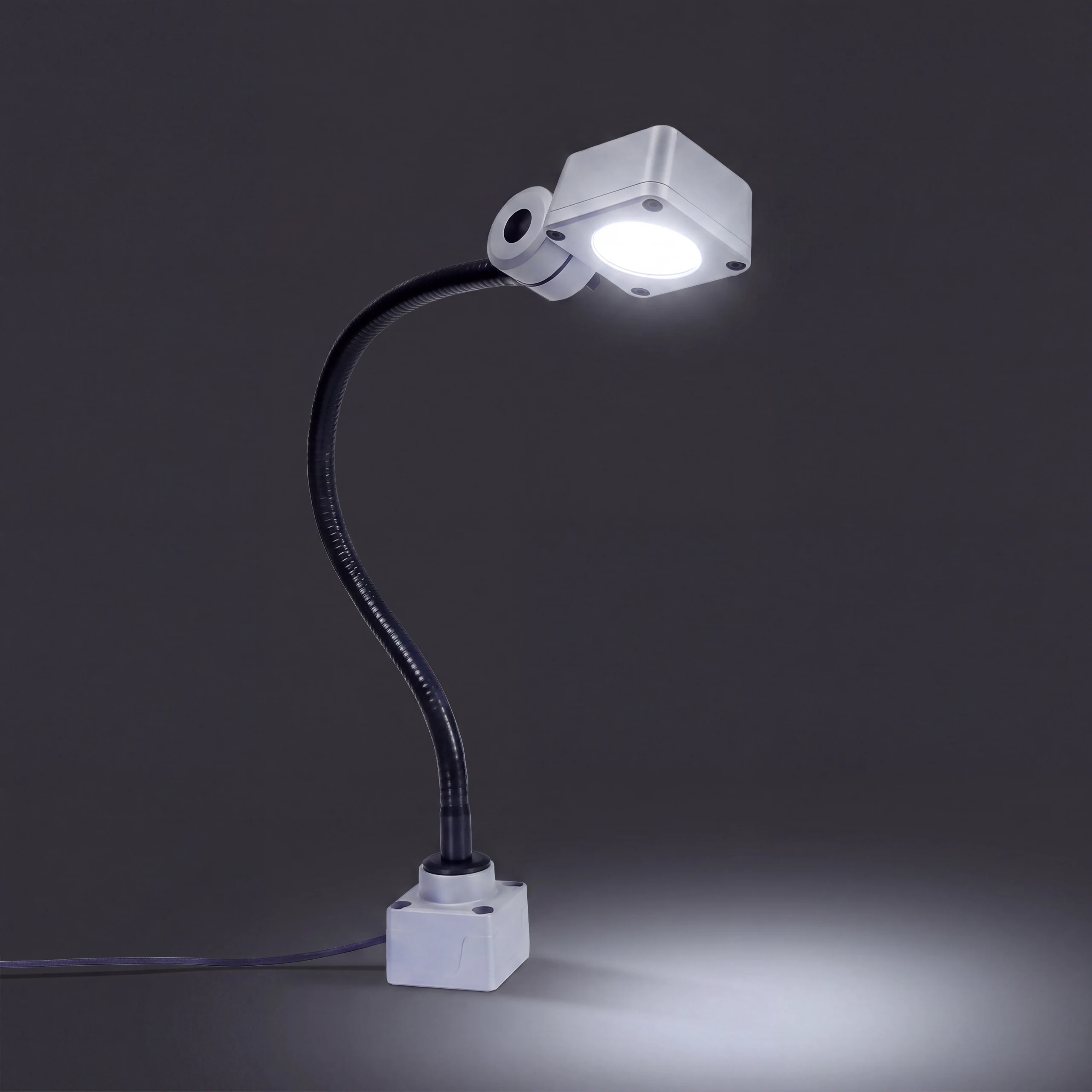

CENALED SPOT Flexarm, the LED task luminaire with gooseneck, screw-on base and 30° optics for wider spot light. The housing of this extraordinary luminaire series is made of powder-coated aluminium. The repositionable flexible arm, or gooseneck, is 500 mm long. The LED technology in the luminaire head is protected by 4 mm of safety glass, completing the requirements for the approved high degree of protection. Economical high-power LEDs ensure a luminous efficacy of 134 Im/W, which is exceptional in this class.
The CENALED SPOT is available for machine connection with 24V DC and for direct connection with 100-305V AC. The connecting cables leading from the LED luminaire are each 3 m long.
The CENALED SPOT is equipped with a screw-on base as standard. As a non-destructive installation variant, the luminaire can thus be screwed onto an optional magnetic holder and fixed to all magnetically adherent surfaces.
The CENALED SPOT is available for machine connection with 24V DC and for direct connection with 100-305V AC. The connecting cables leading from the LED luminaire are each 3 m long.
The CENALED SPOT is equipped with a screw-on base as standard. As a non-destructive installation variant, the luminaire can thus be screwed onto an optional magnetic holder and fixed to all magnetically adherent surfaces.
Properties "CENALED SPOT DC, Flexarm"
| Order number: | 121012-01 |
|---|---|
| Model: | CENALED SPOT Flexible Arm |
| Type: | LED workplace light with gooseneck |
| Illuminant: | High Power LED |
| Power consumption: | ~8,5 W |
| Lamp luminous flux: | 1120 lm |
| Lamp luminous efficiency: | 134 lm/W |
| Light distribution: | Direct |
| Light colour: | 5000K 3-step MacAdam |
| Colour rendering (Ra): | >80 |
| Supply voltage: | 24V DC ± 10% |
| Power supply: | - |
| Connection (connector): | Connection cable, oil flex, with open cable ends |
| Degree of protection: | IP67 |
| Class of protection: | III |
| Beam angle (optics): | 30° |
| Operating temperature: | -10 °C - +50 °C (14 °F - 122 °F) |
| Lamps lifetime: | > 100,000 h (L90/B10) |
| Housing material: | aluminium (powder-coated) |
| Cover material: | tempered glass, shatterproof |
| Flex arm length [A]: | 500 mm (19,69“) |
| base height: | 59 mm (2,32“) |
| Mounting: | screw-on base |
| Weight (net): | 1660 g (~59 oz) |
| Gross weight: | 1740 g (~61 oz) |
| Risk group (DIN EN 62471): | Free group |
| Markings: | CE, UKCA, ETL Listed (5003529) |
| Dimmable: | Yes, via push button at the light head, ON/OFF and dimming |
| Mounting accessories: | Magnet holder plate optional |
| Made in: | Germany |
| Feature: | universal workplace light with high protection degree |
Skip product gallery
47 available
M12 connector, A-type coded, straight, for 24V DC
€9.50*
With this sensor/actuator connecting plug, a sensor cable for our 24V DC LED luminaires can be assembled to the desired length. The 4-pole M12 connector in the straight plug version is mounted on the open ends of a sensor cable for 24V DC available here.For assembly: The connector is mounted on a sensor cable up to 6 mm thick for power supply with wire cross-sections between 0.25 mm² and 0.75 mm². Inside the cable socket, the cables are fixed by means of screw terminals, AWG 18, and the cable is secured by a Pg7 cable gland. The IP67 protection class in the assembled state then enables the safe use of LED luminaires in lostic and packaging technology as well as in factory automation and special machine construction.
Order no.
200200-04
Skip product gallery
Available again soon
CENALED magnetic clamp for screw-on base
€30.70*
Extremely strong holding magnet for the standard screw-on base of the LED luminaire series CENALED. This additional option turns every CENALED LED luminaire simply and safely into a magnetic luminaire or LED work luminaire with a magnetic base.
Order no.
220500-01
120 available
CENALED table clamp for screw-on base
€28.10*
With the table clamp for the CENALED screw-on base, a CENALED SPOT flex arm, CENALED SPOT articulated arm or CENALED SPOT articulated head can be attached to tabletops with a top thickness of 15 mm up to 60 mm. Fixing options are as follows: The screw-on base of the LED luminaire can be screwed directly onto the retaining plate of the table clamp. If a magnetic clamp (220500-01) is already attached to the screw-on base, the retaining plate can be removed from the table clamp and the luminaire can be attached magnetically to the table clamp.
Order no.
220500-02
26 available
CENALED wall bracket for screw-on base
€19.70*
Bracket for wall mounting of a CENALED LED luminaire. The upper hole size is suitable for the screw-on base.
Order no.
220500-03
