CENALED LENS Flexarm DC
CENALED LENS Flexarm DC
€243.20*
| Accessories total price | €0.00 |
In stock 39 in stock
€243.20 *

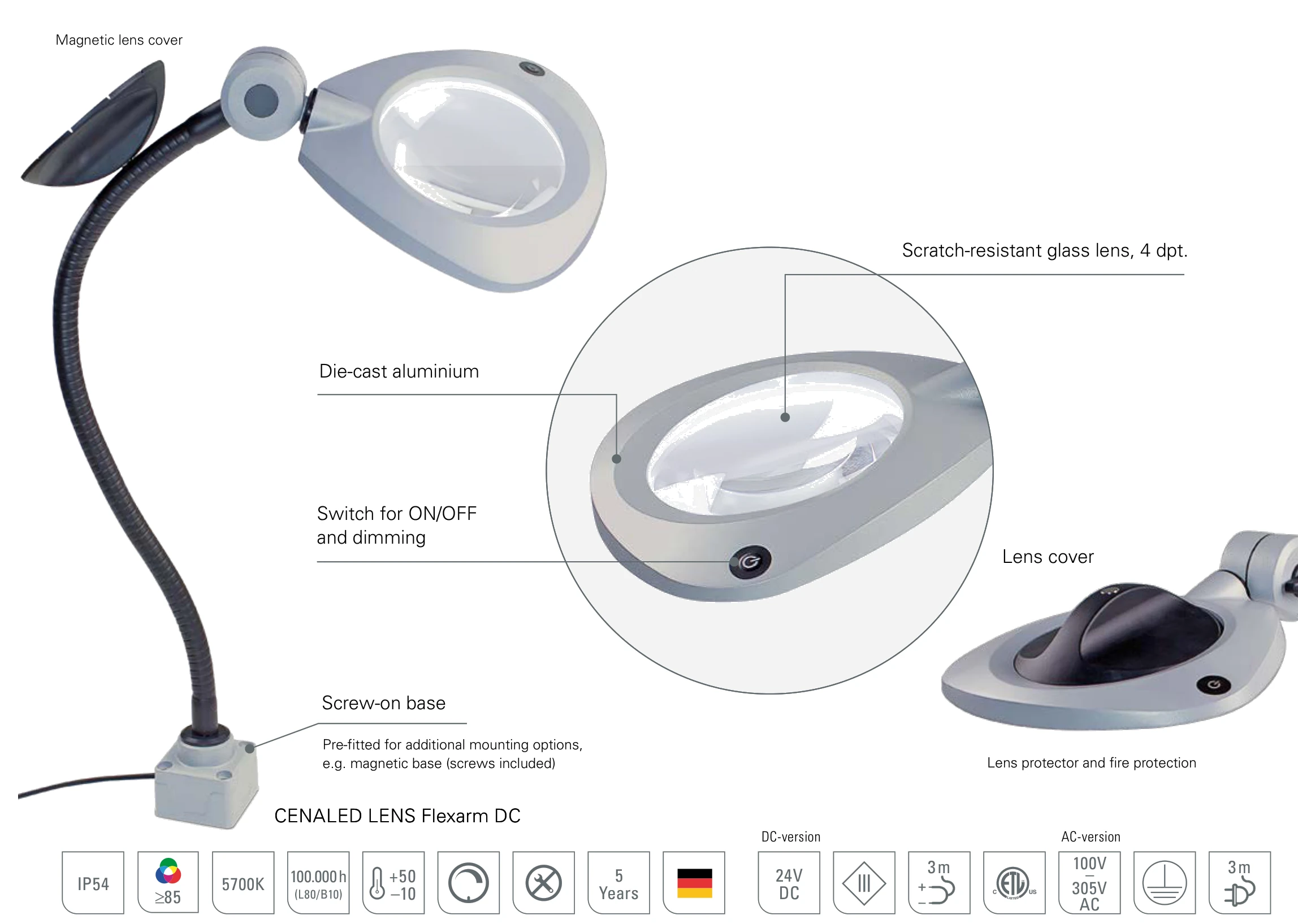

See what the naked eye misses: The CENALED LENS combines bright LED working light with an illuminated glass lens (4 dioptres) – the magnifier light on a flexible arm for inspection, control and precision work.
On the flexible arm, lens and light sit exactly where the inspection happens; the Makrolon cover and IP54 make the light fit for everyday workplace duty.
- Magnify without shadows: Illuminated glass lens with 4 dioptres – the light comes straight from the luminaire, the view of the detail stays clear.
- Light on demand: Dimmable – adjust the brightness to task and environment.
- Fatigue-free work: Flicker-free daylight white light (5700 K) with colour rendering Ra >85 – edges, contours and surfaces stay clearly visible.
- Maintenance? Practically never: > 100,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
- Savings every shift: 152 lm/W efficacy – maximum brightness from minimal power consumption.
This variant: 1277 lm luminous flux at ~8.4 W power consumption, connection 24 V DC.
Temperature data
| Operating temperature min. (°C): | -10 °C (+14 °F) |
|---|---|
| Operating temperature max. (°C): | +50 °C (+122 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| ETL Listed: | listed |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption: | ~8,4 W |
|---|---|
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | LED-Ring, 21 High Power LED, PWM dimmbar |
| Lamp luminous flux: | 1277 lm |
| Lamp luminous efficiency: | 152 lm/W |
| Lamps lifetime: | > 100.000 h (L80/B10) |
| Dimmable: | Yes, via push button at the light head, ON/OFF and dimming |
| Beam angle (optics): | 120° |
| Light colour: | Daylight white |
| Colour temperature: | 5700 K |
| Colour rendering (CRI): | Ra ≥ 80, Ra ≥ 85 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Power supply: | - |
| Connection (connector): | Connection cable, oil flex, with open cable ends |
| Supply voltage: | 24V DC ± 10% |
Dimensions & housing
| Housing material: | aluminium (powder-coated) |
|---|---|
| Cover material: | Makrolon® |
| Type: | LED magnifying lamp with gooseneck |
| Weight (net): | 1450 g (~51 oz) |
| Gross weight: | 2450 g (~86 oz) |
| Mounting accessories: | Magnet holder plate optional |
| base height: | 59 mm (2,32“) |
| Magnifier material: | Glass |
| Degree of protection (IP): | IP54 |
Further technical data
| Order number: | 121110-01 |
|---|---|
| Model: | CENALED LENS |
| Magnifying lens: | Bikonvex Ø 116 mm, Brennweite 250 mm |
| Made in: | Germany |
| Feature: | LED magnifying light , dimmable, glass magnifier, illumina-ted, 4 dpt., Ø160 mm, lens cover in delivery scope |
Energy efficiency
| Contained light source(s) – energy efficiency class: | E |
|---|---|
| EPREL registration number(s): | 1332278 |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the colour temperature mean?
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
