CENALED FLOOD Flexarm DC

21 available

€197.20*

Content: 1 piece

Prices excl. VAT plus shipping costs

further versions

Accessories

prime-m12-stecker-gerade-a-kodiert-led2work

M12 connector, A-type coded, straight, for 24V DC

€9.50*

M12 connector, A-type coded, straight, for 24V DC

€9.50*

CENALED magnetic clamp for screw-on base

€30.70*

CENALED magnetic clamp for screw-on base

€30.70*

CENALED table clamp for screw-on base

€28.10*

CENALED table clamp for screw-on base

€28.10*

CENALED wall bracket for screw-on base

€19.70*

CENALED wall bracket for screw-on base

€19.70*

Accessories total price

€197.20 *

Stk

Product number: 121210-01

EAN: 4260556626307

Available downloads

Operating instructions (0.48 MB)

CAD Download (Link to download)

Data sheet (0.66 MB)

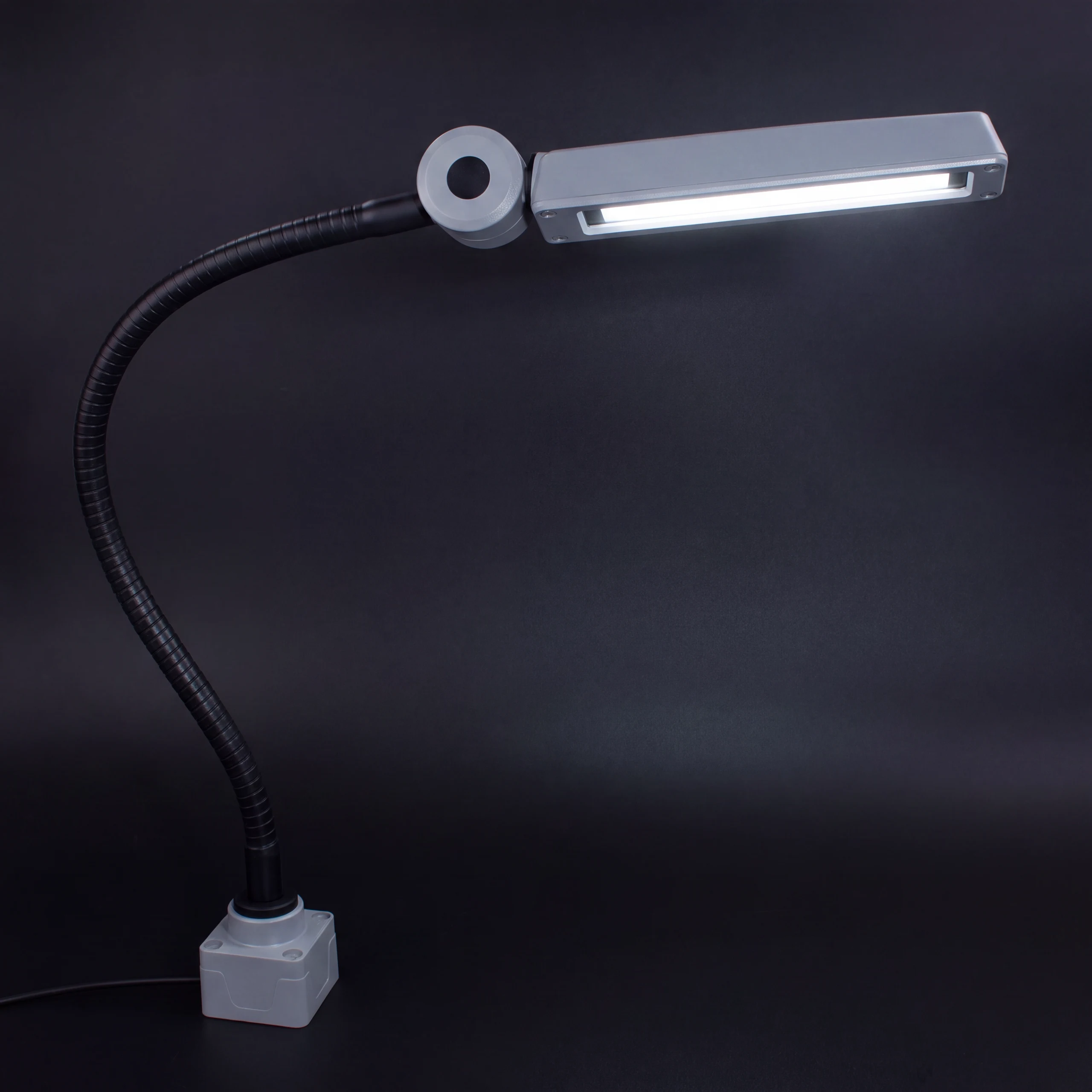

CENALED FLOOD Flexarm DC, protection class IP67, a powerful and flexible LED task light for industrial use. With a light color of 5700K and a beam angle of 118° -> Halbwertswinkel, it provides excellent illumination of the work area. Thanks to the flexible arm, the luminaire can be individually aligned.

Properties "CENALED FLOOD Flexarm DC"

Order number:	121210-01
Model:	CENALED FLOOD
Type:	LED workplace light
Illuminant:	SMD-LED
Power consumption:	~8,4 W
Lamp luminous flux:	1260 lm
Lamp luminous efficiency:	150 lm/W
Light distribution:	direct
Light colour:	5700K
Connected load:	24V DC ± 10%
Power supply:	-
Connection (connector):	Connection cable, oil flex, with open cable ends
Degree of protection:	IP67
Class of protection:	III
Beam angle (optics):	118° -> Halbwertswinkel
Operating temperature:	-10 °C - +50 °C (14 °F - 122 °F)
Colour rendering (Ra):	>85
Lamps lifetime:	> 100,000 h (L80/B10)
Housing material:	aluminium (powder finished)
Cover material:	tempered glass
Flex arm length [A]:	500 mm (19,69“)
base height:	59 mm (2,32“)
Mounting:	screw-on base
Weight (net):	1850 g (~65 oz)
Gross weight:	2450 g (~86 oz)
Markings:	CE, UKCA, ETL Listed (5003529)
Dimmable:	yes, via push button at the light head, ON/OFF and dimming
Mounting accessories:	optional
Made in:	Germany

65 available

M12 connector, A-type coded, straight, for 24V DC

With this sensor/actuator connecting plug, a sensor cable for our 24V DC LED luminaires can be assembled to the desired length. The 4-pole M12 connector in the straight plug version is mounted on the open ends of a sensor cable for 24V DC available here.For assembly: The connector is mounted on a sensor cable up to 6 mm thick for power supply with wire cross-sections between 0.25 mm² and 0.75 mm². Inside the cable socket, the cables are fixed by means of screw terminals, AWG 18, and the cable is secured by a Pg7 cable gland. The IP67 protection class in the assembled state then enables the safe use of LED luminaires in lostic and packaging technology as well as in factory automation and special machine construction.

Order no. 200200-04

€9.50*

164 available

CENALED magnetic clamp for screw-on base

Extremely strong holding magnet for the standard screw-on base of the LED luminaire series CENALED. This additional option turns every CENALED LED luminaire simply and safely into a magnetic luminaire or LED work luminaire with a magnetic base.

Order no. 220500-01

€30.70*

108 available

CENALED table clamp for screw-on base

With the table clamp for the CENALED screw-on base, a CENALED SPOT flex arm, CENALED SPOT articulated arm or CENALED SPOT articulated head can be attached to tabletops with a top thickness of 15 mm up to 60 mm. Fixing options are as follows: The screw-on base of the LED luminaire can be screwed directly onto the retaining plate of the table clamp. If a magnetic clamp (220500-01) is already attached to the screw-on base, the retaining plate can be removed from the table clamp and the luminaire can be attached magnetically to the table clamp.

Order no. 220500-02

€28.10*

5 available

CENALED wall bracket for screw-on base

Bracket for wall mounting of a CENALED LED luminaire. The upper hole size is suitable for the screw-on base.

Order no. 220500-03

€19.70*
