CENALED FLOOD Flexarm AC
24 available
€240.50*
Content:
1 piece
| Accessories total price | €0.00 |
further versions
Accessories
Accessories total price
€240.50 *
Product number:
121210-11
EAN:
4260556626314
Available downloads
Data sheet
(0.67 MB)
Operating instructions
(0.44 MB)
CAD Download
(Link to download)

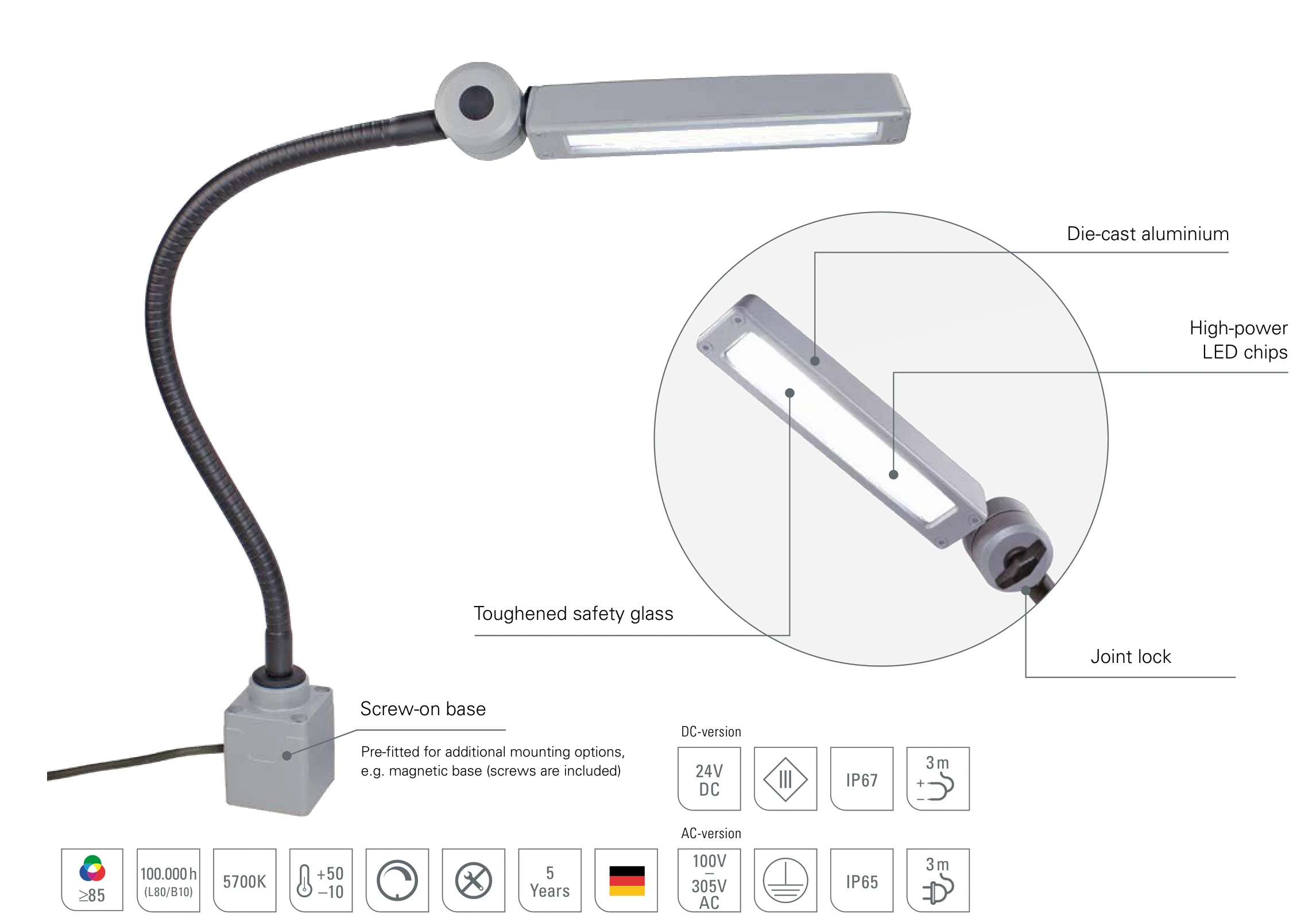

CENALED FLOOD Flexarm AC, protection class IP65, a powerful and flexible LED task light for industrial use. With a light color of 5700K and a beam angle of 118° -> Halbwertswinkel, it provides excellent illumination of the work area. Thanks to the flexible arm, the luminaire can be individually aligned.
Properties "CENALED FLOOD Flexarm AC"
| Order number: | 121210-11 |
|---|---|
| Model: | CENALED FLOOD |
| Type: | LED workplace light |
| Illuminant: | SMD-LED |
| Power consumption: | ~9 W |
| Lamp luminous flux: | 1260 lm |
| Lamp luminous efficiency: | 150 lm/W |
| Light distribution: | direct |
| Light colour: | 5700K |
| Connected load: | 100-305V AC ± 10%, 50-60 Hz |
| Power supply: | integrated |
| Connection (connector): | connection cable with power plug |
| Degree of protection: | IP65 |
| Class of protection: | I |
| Beam angle (optics): | 118° -> Halbwertswinkel |
| Operating temperature: | -10 °C - +50 °C (14 °F - 122 °F) |
| Colour rendering (Ra): | >85 |
| Lamps lifetime: | > 100,000 h (L80/B10) |
| Housing material: | aluminium (powder finished) |
| Cover material: | tempered glass |
| Flex arm length [A]: | 500 mm (19,69“) |
| base height: | ~3,46“ |
| Mounting: | screw-on base |
| Weight (net): | 1950 g (~69 oz) |
| Gross weight: | 2550 g (~90 oz) |
| Markings: | CE, UKCA |
| Dimmable: | yes, via push button at the light head, ON/OFF and dimming |
| Mounting accessories: | optional |
| Made in: | Germany |
164 available
CENALED magnetic clamp for screw-on base
€30.70*
Extremely strong holding magnet for the standard screw-on base of the LED luminaire series CENALED. This additional option turns every CENALED LED luminaire simply and safely into a magnetic luminaire or LED work luminaire with a magnetic base.
Order no.
220500-01
108 available
CENALED table clamp for screw-on base
€28.10*
With the table clamp for the CENALED screw-on base, a CENALED SPOT flex arm, CENALED SPOT articulated arm or CENALED SPOT articulated head can be attached to tabletops with a top thickness of 15 mm up to 60 mm. Fixing options are as follows: The screw-on base of the LED luminaire can be screwed directly onto the retaining plate of the table clamp. If a magnetic clamp (220500-01) is already attached to the screw-on base, the retaining plate can be removed from the table clamp and the luminaire can be attached magnetically to the table clamp.
Order no.
220500-02
5 available
CENALED wall bracket for screw-on base
€19.70*
Bracket for wall mounting of a CENALED LED luminaire. The upper hole size is suitable for the screw-on base.
Order no.
220500-03
