LENSLED II Adjustable arm, dimmable, with scratch-resistant glass lens
LENSLED II Adjustable arm, dimmable, with scratch-resistant glass lens
€508.30*
| Accessories total price | €0.00 |
In stock 30 in stock
€508.30 *

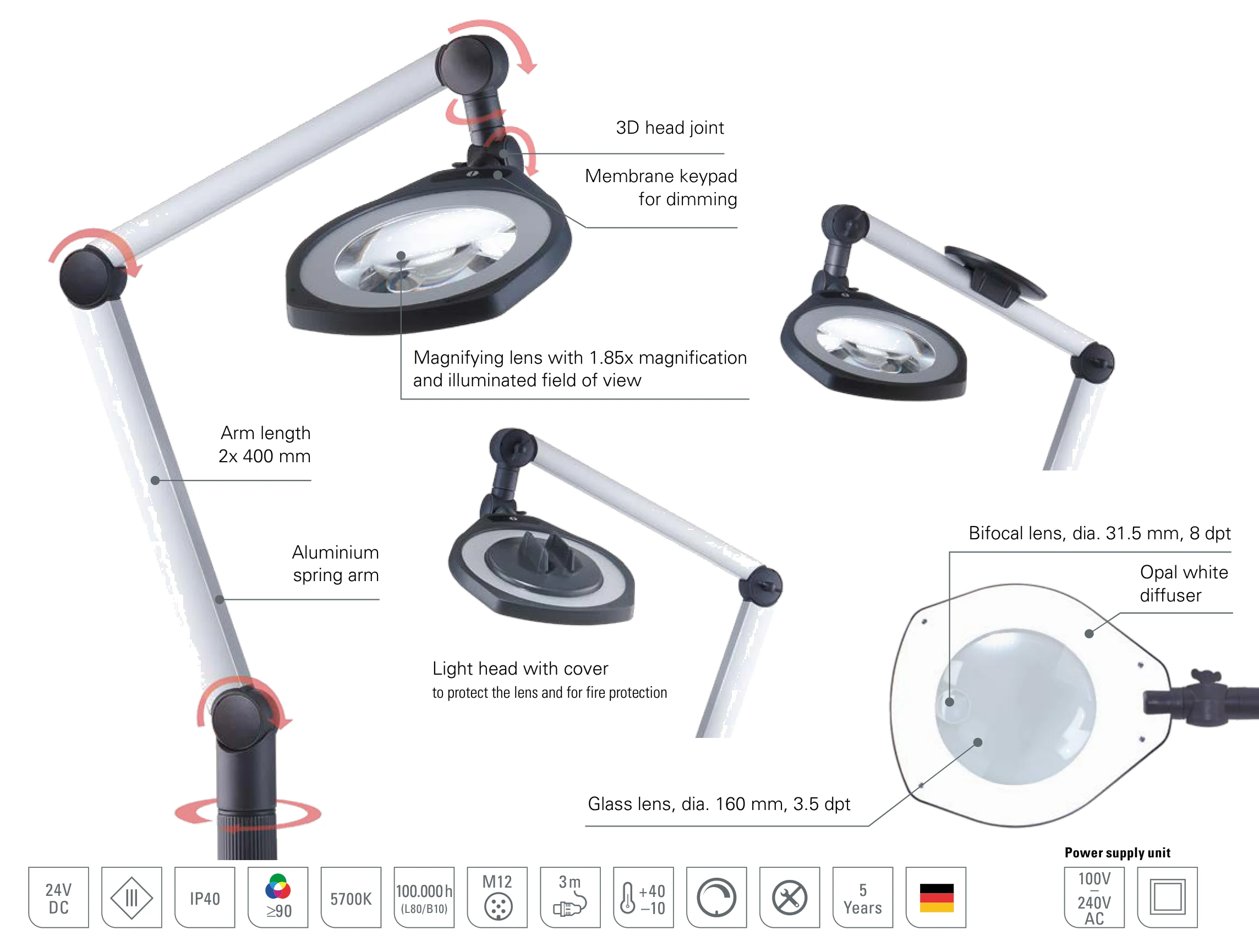

Big details, clear view: The LENSLED II combines an illuminated glass lens with 3.5 dioptres (Ø 160 mm) and bright LED working light in one magnifier luminaire – the finest structures become large, sharp and effortlessly visible.
The real glass lens is extremely scratch-resistant – it stays clear even after years of daily use, where plastic lenses would long since be dull and scratched. The articulated arm positions lens and light precisely over the workpiece.
- Unpack, clamp, go: Table clamp included – the light mounts directly at the workplace without any accessories.
- Light on demand: Dimmable – adjust the brightness steplessly to the visual task and environment.
- Fatigue-free work: Flicker-free daylight white light (5700 K) with colour rendering Ra >90 – edges, contours and surfaces stay clearly visible.
- Maintenance? Practically never: > 100,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
Key figures: 1570 lm luminous flux at ~15 W power consumption, connection 24 V DC.
Temperature data
| Operating temperature min. (°C): | -10 °C (+14 °F) |
|---|---|
| Operating temperature max. (°C): | +40 °C (+104 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption: | ~15 W |
|---|---|
| Glare control: | opal white |
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | SMD LED |
| Lamp luminous flux: | 1570 lm |
| Lamp luminous efficiency: | ca. 105 lm/W |
| Lamps lifetime: | > 100.000 h (L80/B10) |
| Dimmable: | Internal dimmer with memory function |
| Beam angle (optics): | 120° |
| Light colour: | Daylight white |
| Colour temperature: | 5700 K |
| Colour rendering (CRI): | Ra ≥ 80, Ra ≥ 85, Ra ≥ 90 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Power supply: | Included external PSU 100-240V AC |
| Connection PSU: | EURO plug to M12 connector |
| Connected load PSU: | 110-240V AC |
| Connection (connector): | M12 A-coded |
| Supply voltage: | 24V DC ± 10% |
Dimensions & housing
| Housing material: | aluminium / plastics |
|---|---|
| Cover material: | plastic soft |
| Type: | LED adjustable arm light |
| Weight (net): | 4000 g (~141 oz) |
| Gross weight: | 4650 g (~164 oz) |
| Mounting accessories: | Included table clamp |
| Length articuleted arms: | 2x 400 mm |
| Magnifier material: | Glass |
| Degree of protection (IP): | IP40 |
Further technical data
| Order number: | 120810-11 |
|---|---|
| Model: | LENSLED II Articulated Arm |
| Magnifying lens: | Biconvex Ø 160 mm |
| Made in: | Germany |
| Feature: | glass magnifier, illuminated, 3,5 dpt., Ø160 mm (6,30“), extremely scratchproof |
Energy efficiency
| Contained light source(s) – energy efficiency class: | F |
|---|---|
| EPREL registration number(s): | 778168 |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the colour temperature mean?
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
