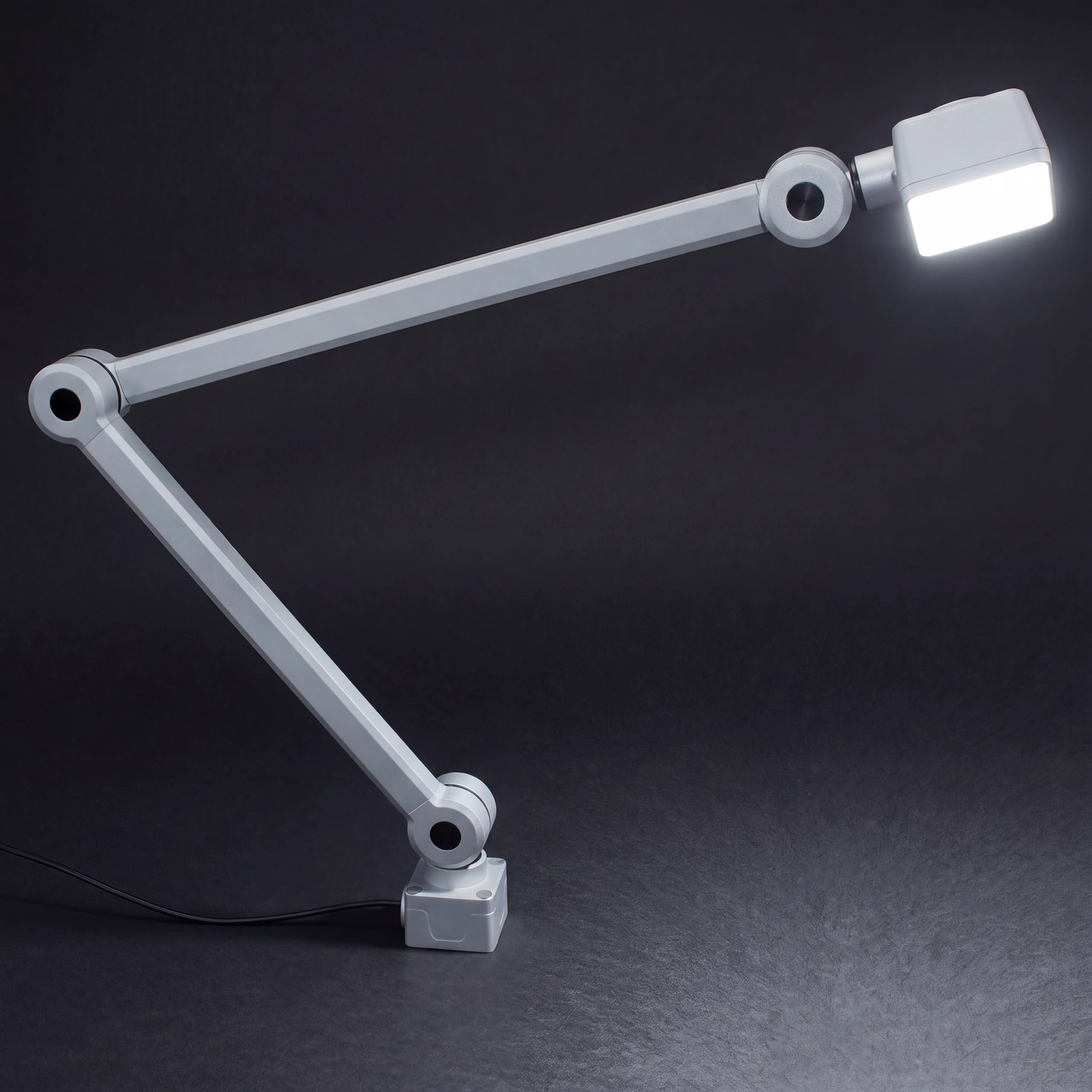

CENALED SPOT DC, Adjustable arm
Skip image gallery
19 available
€243.90*
Content:
1 piece
| Accessories total price | €0.00 |
further versions
Accessories
Accessories total price
€243.90 *
Product number:
121012-02
EAN:
4260556623726
Available downloads
Data sheet
(0.69 MB)
CAD Download
(Link to download)

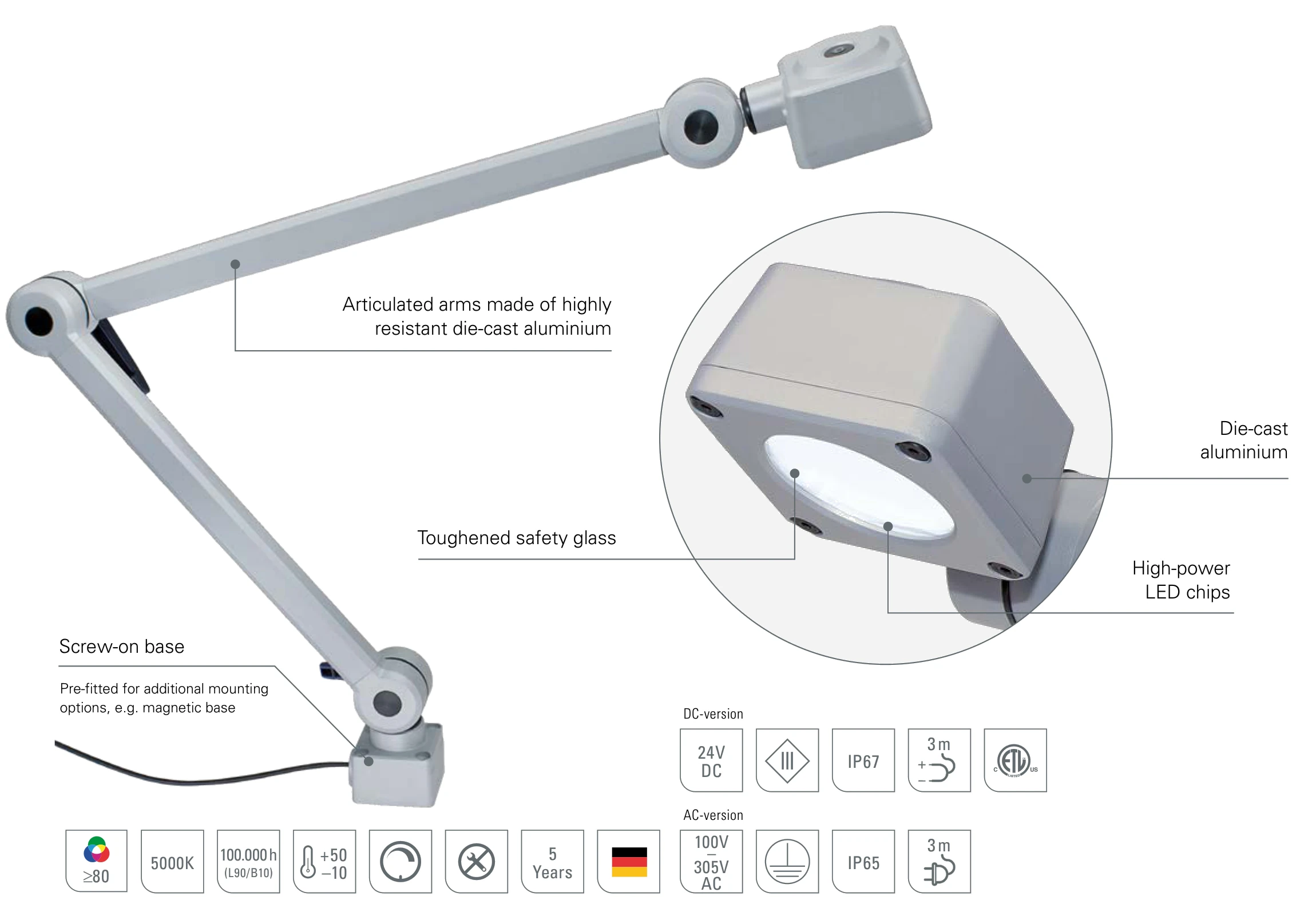

CENALED SPOT Gelenkarm (articulated arm), the movable LED workplace luminaire with screw-on base and 30° optics for wider spot light. The housing of this extraordinary luminaire series is made of powder-coated aluminium. The stable articulated arms are 350 mm / 400 mm long, allowing a projection of almost 80 cm. The LED technology in the luminaire head is protected by almost 4 mm safety glass, completing the requirements for the approved high protection rating. Economical high-power LEDs ensure a luminous efficacy of 134 Im/W, which is exceptional in this class.
The CENALED SPOT is available for machine connection with 24V DC and for direct connection with 100-305V AC. The connecting cables leading from the LED luminaire are each 3 m long.
The CENALED SPOT is equipped with a screw-on base as standard. As a non-destructive installation variant, the luminaire can thus be screwed onto an optional magnetic holder and fixed to all magnetically adhering surfaces.
The CENALED SPOT is available for machine connection with 24V DC and for direct connection with 100-305V AC. The connecting cables leading from the LED luminaire are each 3 m long.
The CENALED SPOT is equipped with a screw-on base as standard. As a non-destructive installation variant, the luminaire can thus be screwed onto an optional magnetic holder and fixed to all magnetically adhering surfaces.
Properties "CENALED SPOT DC, Adjustable arm"
| Order number: | 121012-02 |
|---|---|
| Model: | CENALED SPOT Articulated Arm |
| Type: | LED workplace light with adjustable arm |
| Illuminant: | High Power LED |
| Power consumption: | ~8,5 W |
| Lamp luminous flux: | 1120 lm |
| Lamp luminous efficiency: | 134 lm/W |
| Light distribution: | Direct |
| Light colour: | 5000K 3-step MacAdam |
| Colour rendering (Ra): | >80 |
| Supply voltage: | 24V DC ± 10% |
| Power supply: | - |
| Connection (connector): | Connection cable, oil flex, with open cable ends |
| Degree of protection: | IP67 |
| Class of protection: | III |
| Beam angle (optics): | 30° |
| Operating temperature: | -10 °C - +50 °C (14 °F - 122 °F) |
| Lamps lifetime: | > 100,000 h (L90/B10) |
| Housing material: | aluminium (powder-coated) |
| Cover material: | tempered glass, shatterproof |
| Length articuleted arms: | 350 mm (~13,78“) / 400 mm (~15,75“) |
| base height: | 59 mm (2,32“) |
| Weight (net): | 2350 g (~83 oz) |
| Gross weight: | 3000 g (~106 oz) |
| Risk group (DIN EN 62471): | Free group |
| Markings: | CE, UKCA, ETL Listed (5003529) |
| Dimmable: | Yes, via push button at the light head, ON/OFF and dimming |
| Mounting accessories: | Magnet holder plate optional |
| Made in: | Germany |
| Feature: | universal workplace light with high protection degree |
