DOMELED, 50 mm (~1,97“)
DOMELED, 50 mm (~1,97“)
€66.50*
| Accessories total price | €0.00 |
In stock 137 in stock
€66.50 *

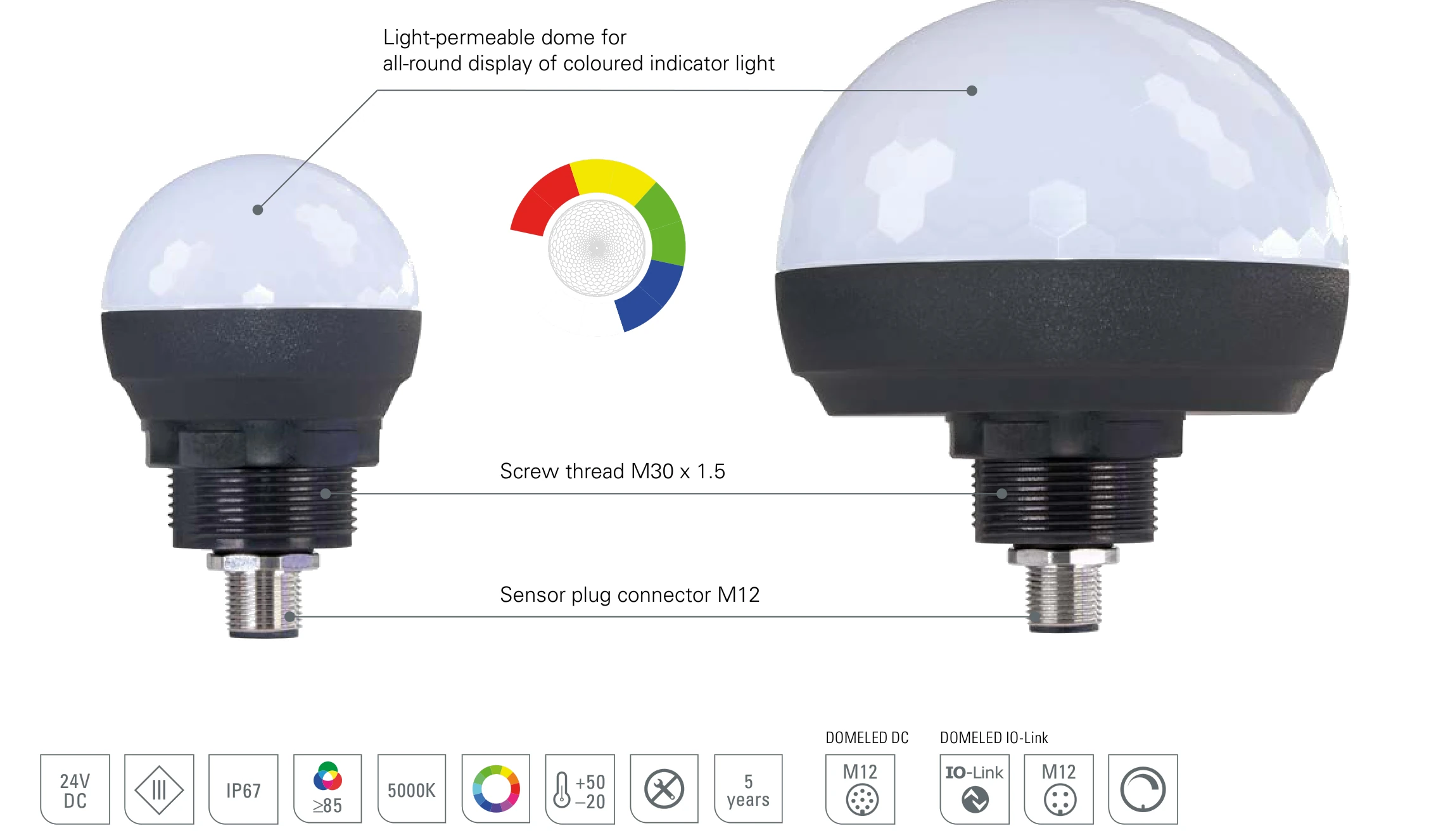

Plant status at a glance: The DOMELED makes machine and process states visible – a compact dome-shaped LED signal light that shows colours brightly and unambiguously right at the machine.
Whether as a status display on the machine, feedback in the assembly cell or a signal at the test station – the DOMELED shows states in bright, coloured LED light.
- Clear priorities: Red overrides all other colours – critical messages always win through.
- Compact instead of a signal tower: Available in 50 and 90 mm – fits where classic signal towers are too big.
- Sealed for machine duty: IP67 – dust-tight and watertight, right at the machine.
- Maintenance? Practically never: > 60,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
This variant: 50 mm size, connection 24 V DC.
Temperature data
| Operating temperature min. (°C): | -20 °C (-4 °F) |
|---|---|
| Operating temperature max. (°C): | +50 °C (+122 °F) |
| Storage temperature min. (°C): | -20 °C (-4 °F) |
| Storage temperature max. (°C): | +80 °C (+176 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| ETL Listed: | listed |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption YELLOW: | 1,3 W |
|---|---|
| Lamp luminous flux YELLOW: | 146 lm |
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | LE-d42-a |
| Colour rendering WHITE (Ra): | >85 |
| Power consumption BLUE: | 1,7 W |
| Power consumption GREEN: | 1,3 W |
| Power consumption RED: | 1,5 W |
| Power consumption white: | 1,8 W |
| Lamp luminous efficiency: | 160 lm/W |
| Lamp luminous flux BLUE: | 66 lm |
| Lamp luminous flux GREEN: | 227 lm |
| Lamp luminous flux RED: | 95 lm |
| White lamp luminous flux: | 282 lm |
| Light colour white: | 5000K (daylight white) |
| Lamps lifetime: | > 60.000 h (L80/B10) |
| Dimmable: | No |
| Beam angle (optics): | 180° |
| Light colour: | Neutral white, RGB / Colour |
| Colour temperature: | 5000 K |
| Colour rendering (CRI): | Ra ≥ 80, Ra ≥ 85 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Power supply: | External |
| Connection (connector): | M12 A-coded |
| Supply voltage: | 24 V DC -5 / +10% |
Dimensions & housing
| Housing material: | PC |
|---|---|
| Height [B] x Width [C]: | 74 mm x 50 mm (~2,91“ x ~1,97“) |
| Length [A]: | 50 mm (~1,97“) |
| Weight (net): | 70 g (~2 oz) |
| Gross weight: | 100 g (~4 oz) |
| Mounting: | optional |
| Degree of protection (IP): | IP67 |
Further technical data
| Order number: | 130190-01 |
|---|---|
| Model: | DOMELED |
| Number of poles: | 8 |
| Feature: | Colours are clearly prioritised: Red overrides all others, followed by yellow, green, blue and white. There is also an input for 2Hz flashing |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the colour temperature mean?
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
