TOPLED LED surface mounted luminaire
TOPLED LED surface mounted luminaire
€118.10*
| Accessories total price | €0.00 |
In stock 209 in stock
€118.10 *

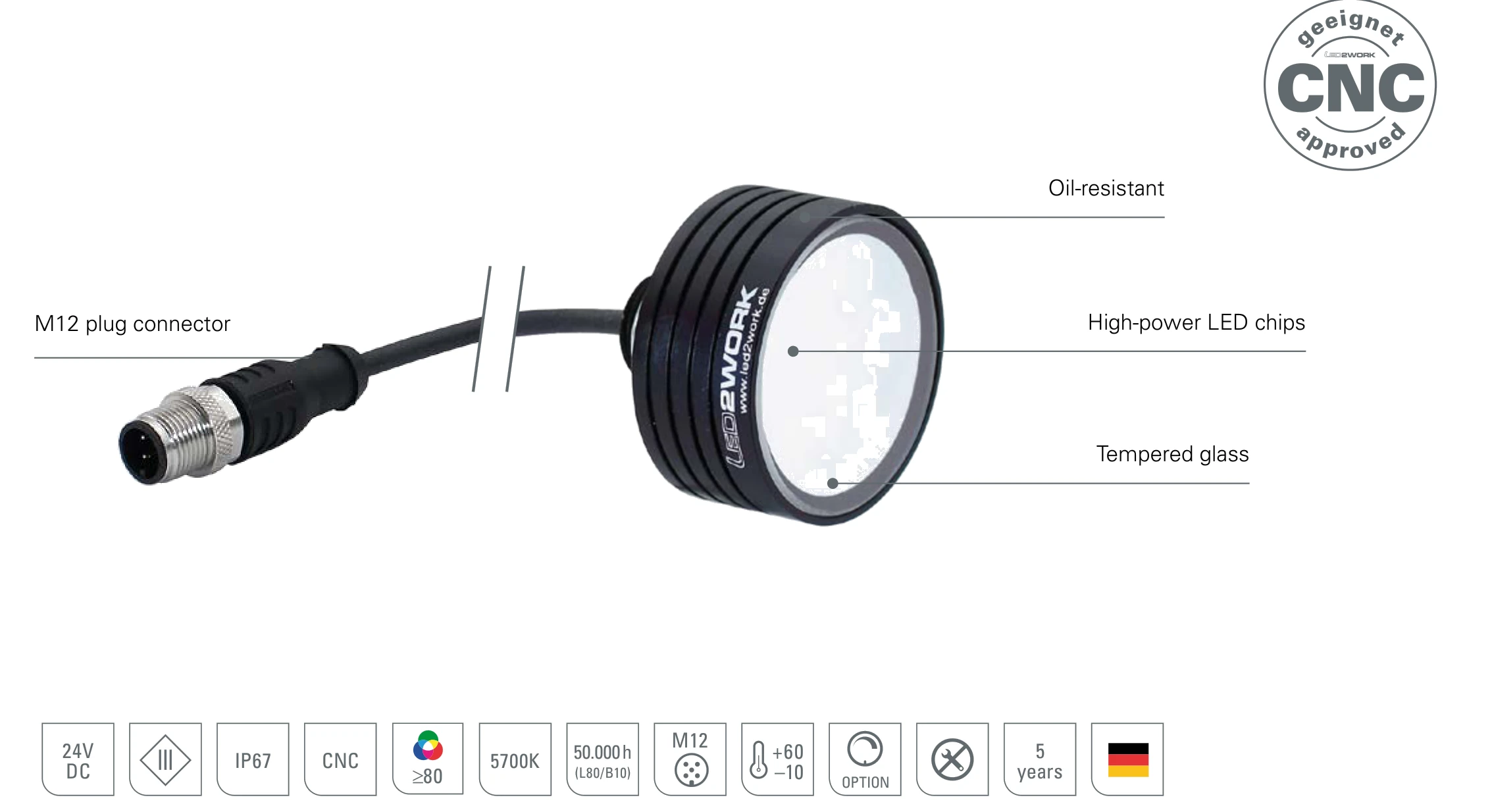

Small as a spot, bright as a floodlight: The TOPLED (Ø 50 mm) was developed for use directly in the working space of machine tools – CNC-suitable, with 4 mm safety glass and a sealed aluminium housing (IP67) it can sit right next to the workpiece.
- Mounted with precision: Compact design with M18 fixing (nut included) and M12 connection with 150 mm cable – fits even where space is scarce.
- Fatigue-free work: Flicker-free daylight white light (5200–5700 K) with colour rendering Ra >80 – edges, contours and surfaces stay clearly visible.
- Maintenance? Practically never: > 50,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
Key figures: 982 lm luminous flux at ~8.5 W power consumption, 24 V DC.
Temperature data
| Operating temperature min. (°C): | -10 °C (+14 °F) |
|---|---|
| Operating temperature max. (°C): | +60 °C (+140 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption: | ~8,5 W |
|---|---|
| Glare control: | ESG matt, shatterproof |
| Risk group (DIN EN 62471): | Group 1 |
| Illuminant: | High Power LED |
| Lamp luminous flux: | 982 lm |
| Lamp luminous efficiency: | 116 lm/W |
| Lamps lifetime: | > 50.000 h (L80/B10) |
| Dimmable: | Optional via accessories |
| Beam angle (optics): | 40° |
| Light colour: | Daylight white |
| Colour temperature: | 5200–5700 K |
| Colour rendering (CRI): | Ra ≥ 80 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Connection (connector): | M12 A-coded with connection cable |
| Supply voltage: | 24V DC ± 10% |
Dimensions & housing
| Housing material: | aluminium |
|---|---|
| Cover material: | 4 mm tempered glass |
| Type: | LED surface-mounted luminaire |
| Height [B] x Width [C]: | Ø 50 mm (~1,97“), 23 mm (~0,91“) built-up |
| Weight (net): | 350 g (~12 oz) |
| Gross weight: | 500 g (~18 oz) |
| Mounting accessories: | Nut M18x1.5 incl. |
| Degree of protection (IP): | IP67 |
Further technical data
| Order number: | 111913-01 |
|---|---|
| Model: | TOPLED |
| Made in: | Germany |
| Feature: | very bright |
Energy efficiency
| Contained light source(s) – energy efficiency class: | F |
|---|---|
| EPREL registration number(s): | 778120 |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
