LEANLED II Basic-Line, 760 mm (~29,92“), opal white
LEANLED II Basic-Line, 760 mm (~29,92“), opal white
€94.20*
| Accessories total price | €0.00 |
Only 3 left 3 in stock
€94.20 *

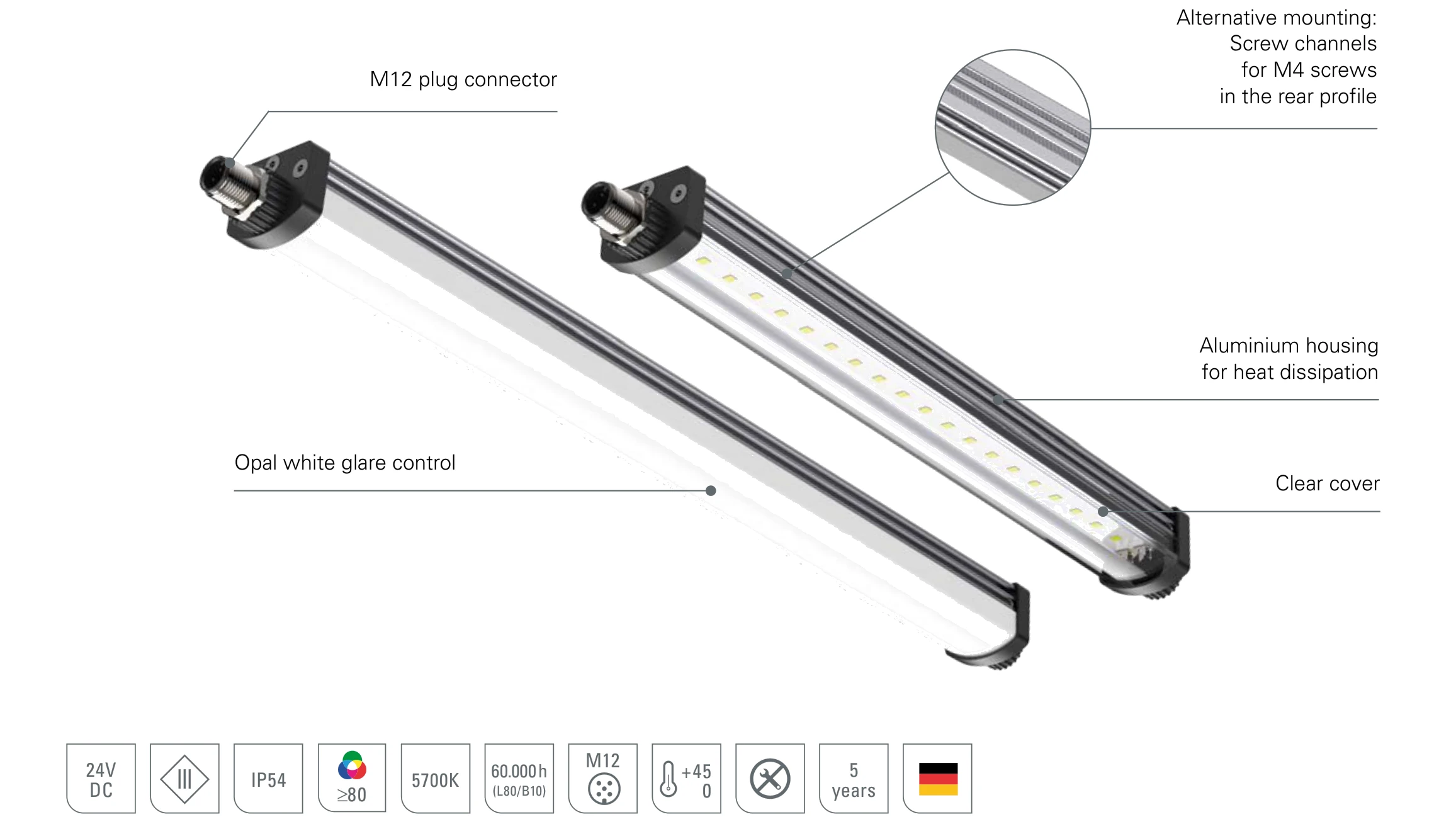

Brand-quality light at an entry-level price: The LEANLED II Basic-Line distils the proven LEANLED II platform down to the essentials – bright daylight white LED light in a slim 31 × 26 mm aluminium profile, made in Germany.
The opal white polycarbonate cover provides even, glare-free light – comfortable even with the luminaire in direct view.
- Mounted in minutes: Swivel and fixed brackets are included – connect via M12 plug to 24 V DC and you're done.
- See clearly: Daylight white light (5700 K) with colour rendering Ra ≥ 80 – even, high-contrast working light.
- Long peace of mind: Over 60,000 hours of service life (L70/B50) – no lamp changes in everyday operation.
- Efficient: 155 lm/W efficacy – plenty of light from little power.
- Solid: Aluminium housing, IP54 – for operating ranges from 0 to +45 °C without flying chips and coolant. Made in Germany.
This variant: 760 mm length, 2666 lm luminous flux at just 17.3 W power consumption.
Scope of delivery: 1× LEANLED II Basic-Line LED light bar, swivel and fixed brackets for mounting.
Temperature data
| Operating temperature min. (°C): | 0 °C (+32 °F) |
|---|---|
| Operating temperature max. (°C): | +45 °C (+113 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption: | 17,3 W |
|---|---|
| Glare control: | opal white |
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | SMD LED |
| Lamp luminous flux: | 2666 lm |
| Lamp luminous efficiency: | 155 lm/W |
| Lamps lifetime: | > 60.000 h (L80/B10) |
| Dimmable: | No |
| Beam angle (optics): | 120° |
| Light colour: | Daylight white |
| Colour temperature: | 5700 K |
| Colour rendering (CRI): | Ra ≥ 80 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Power supply: | External |
| Connection (connector): | M12 A-coded |
| Supply voltage: | 24V DC * |
Dimensions & housing
| Housing material: | aluminium |
|---|---|
| Cover material: | Polycarbonat |
| Type: | LED surface-mounted luminaire for machines |
| Height [B] x Width [C]: | 31 mm x 26 mm (~1,22“ x ~1,02“) |
| Length [A]: | 760 mm (~29,92“) |
| Weight (net): | 620 g (~22 oz) |
| Gross weight: | 700 g (~25 oz) |
| Mounting accessories: | Including swivel and fixed bracket |
| cascadable: | No |
| Degree of protection (IP): | IP54 |
Further technical data
| Order number: | 111010-55 |
|---|---|
| Model: | LEANLED II Basic-Line Opal White |
| Number of poles: | 3 |
| Made in: | Germany |
| Note: | In case of an undervoltage supply (< 24V DC), the luminous flux is reduced |
Energy efficiency
| Contained light source(s) – energy efficiency class: | C |
|---|
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the colour temperature mean?
ⓘ What does the luminous flux (lumens) mean?
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
