FIELDLED EVO 280_96 Surface-Mounted, 24V DC, M12 front-end
€232.70*
| Accessories total price | €0.00 |
€232.70 *
Available downloads
FIELDLED EVO surface-mounted is a very bright LED machine luminaire for homogeneous, flicker-free and glare-free illumination of large-volume systems and machines. The machine luminaire is preferably used in harsh environments, such as in metal cutting. Safety glass, a metal housing and high-quality seals protect against chips and coolant.

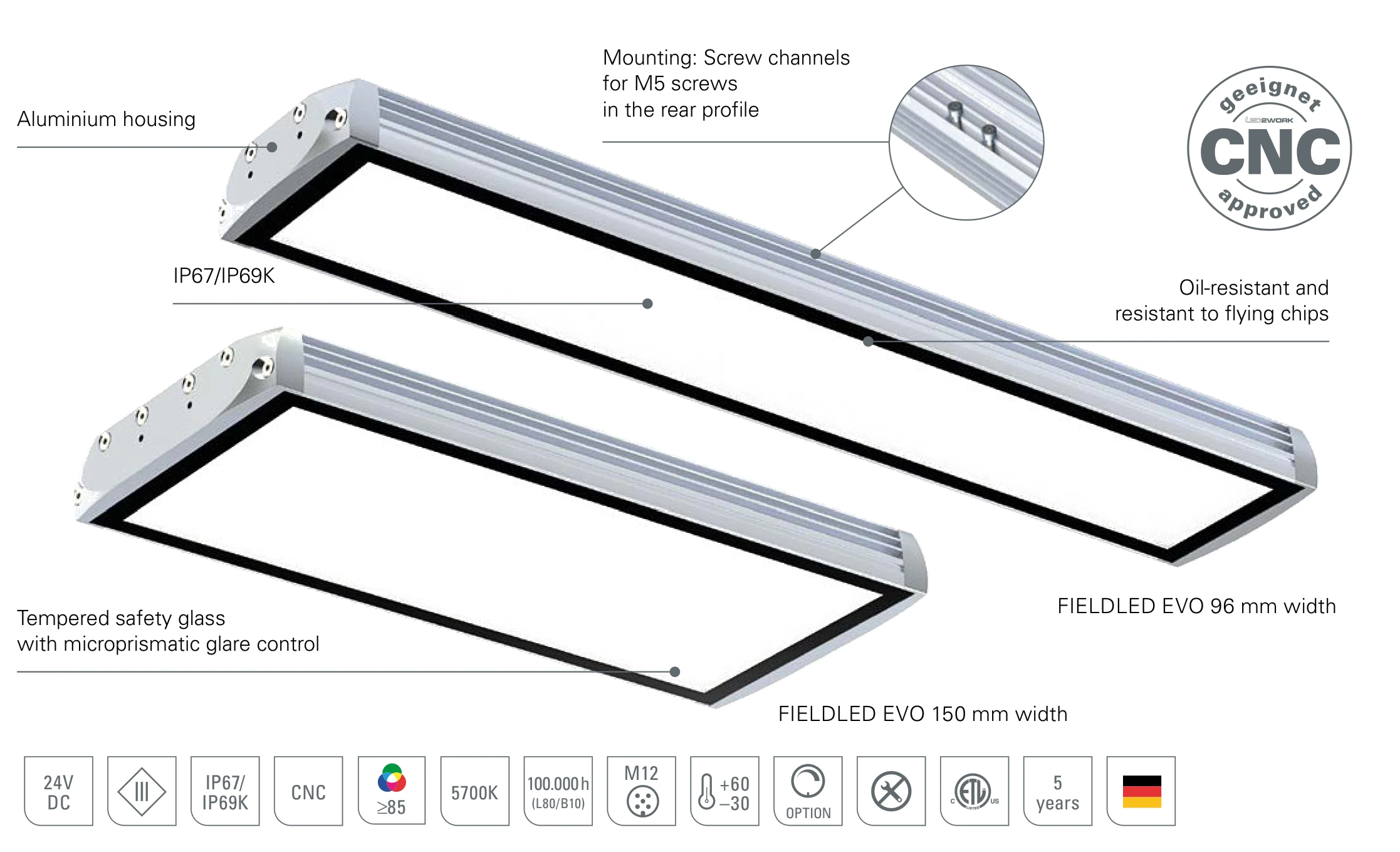

The FIELDLED EVO can be easily retrofitted in almost any machine tool. The luminaire is mounted via screw channels on the rear and connected to 24V DC via a reverse-polarity protected M12 plug connector. Additional luminaire brackets are available as an option. Depending on the version, the connection is located at the rear or at the front of the FIELDLED EVO. The surface-mounted version of the FIELDLED EVO LED machine luminaire is available in two widths of 96 mm and 150 mm and in six different lengths.
| Order number: | 153010-01 |
|---|---|
| Model: | FIELDLED EVO Surface-Mounted, M12 front-end |
| Type: | LED surface-mounted luminaire for machines |
| Illuminant: | SMD LED |
| Power consumption: | ~19 W |
| Lamp luminous flux: | 3000 lm |
| Lamp luminous efficiency: | 155 lm/W |
| Light distribution: | Direct |
| Light colour: | 5700K 3-step MacAdam |
| Colour rendering (Ra): | >85 |
| Connected load: | 24V DC ± 10% |
| Connection (connector): | M12 A-coded, end face |
| Degree of protection: | IP67/IP69K |
| Class of protection: | III |
| Glare control: | Microprisms |
| Beam angle (optics): | 100° |
| Operating temperature: | -30 °C - +60 °C (-22 °F - 140 °F) |
| Lamps lifetime: | > 100,000 h (L80/B10) |
| Vibration resistance: | At 10 to 55 Hz (amplitude 0.35 mm (~0,01“)) |
| Shock resistance: | Up to 50 g (~2 oz) |
| Housing material: | aluminium |
| Cover material: | ESG (toughened tempered glass), shatterproof |
| Height [B] x Width [C]: | 30 mm x 96 mm (~1,18“ x ~3,78“) |
| Length [A]: | 280 mm (~11,02“) |
| Weight (net): | 1180 g (~42 oz) |
| Gross weight: | 1330 g (~47 oz) |
| Risk group (DIN EN 62471): | Free group |
| Markings: | CE, UKCA, ETL Listed (5003529) |
| Dimmable: | Optional via accessories |
| Mounting accessories: | Optional; two continuous screw channels for metric screwswith thread M5 on the reverse |
| Made in: | Germany |
