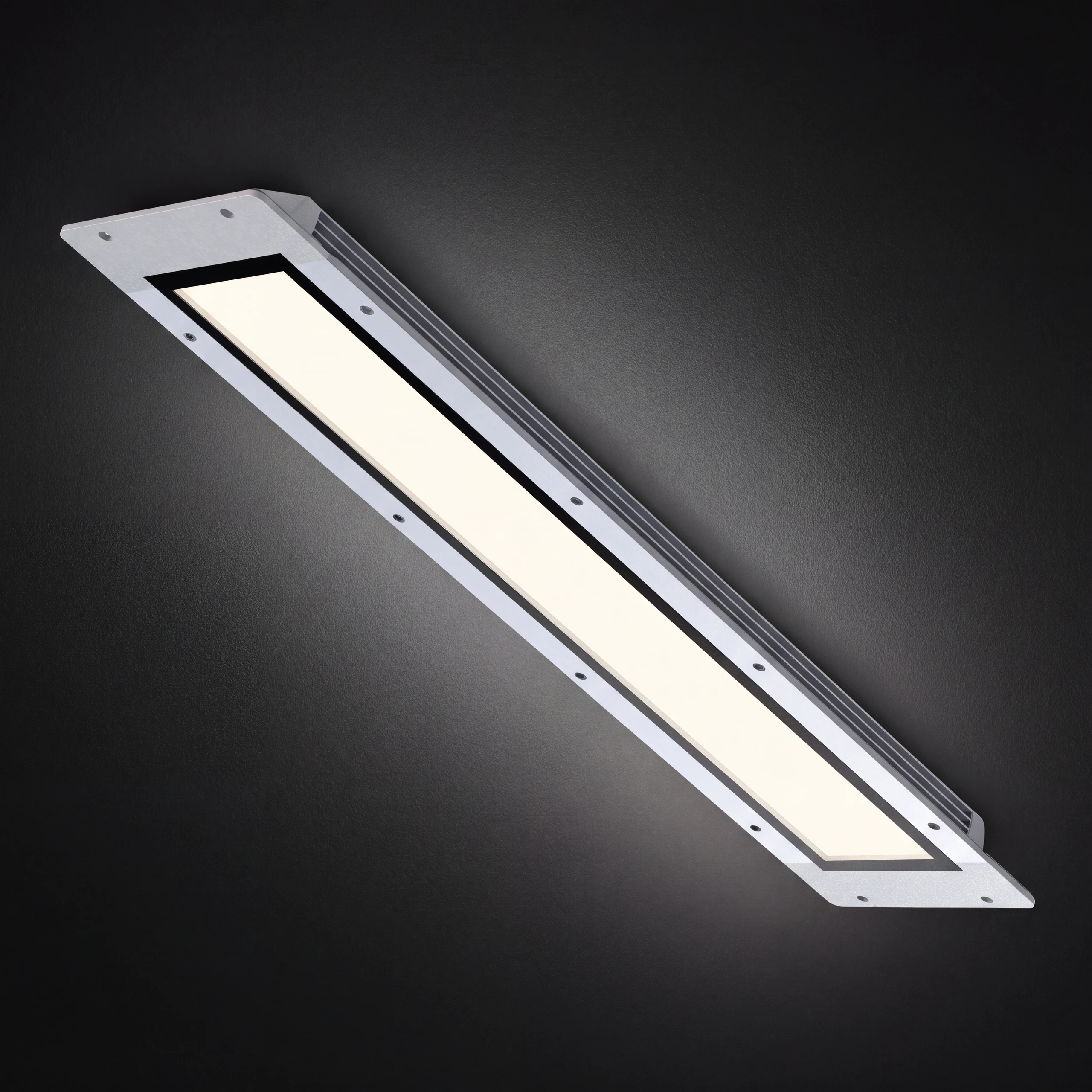

FIELDLED EVO 540_96 Integrated, 24V DC, M12 front-end
€324.70*
| Accessories total price | €0.00 |
€324.70 *
Available downloads
FIELDLED EVO Einbau is a very bright luminaire for recessed shafts in machines and systems. The LED machine luminaire provides homogeneous, flicker-free and glare-free illumination of large-volume systems and machines. The machine luminaire can be used under harsh production conditions, such as in metal cutting. A toughened safety glass bonded into the metal housing and high-quality seals protect against chips and coolant/lubricant emulsion.
The FIELDLED EVO can be retrofitted into almost any standard machine tool mounting shaft by inserting the mounting housing into the shaft and securing the luminaire via the mounting frame. The recessed luminaire draws 24V DC machine current via a reverse polarity protected M12 connector. Depending on the variant, the connection is located at the rear or at the front of the FIELDLED EVO. The recessed luminaire is available in four lengths. The recessed housing of the LED machine luminaire FIELDLED EVO has a width of 96 mm and a depth of approx. 30 mm.
| Order number: | 153110-11 |
|---|---|
| Model: | FIELDLED EVO Integrated, M12 front-end |
| Type: | LED recessed luminaire for machines |
| Illuminant: | SMD LED |
| Power consumption: | ~39 W |
| Lamp luminous flux: | 6000 lm |
| Lamp luminous efficiency: | 155 lm/W |
| Light distribution: | Direct |
| Light colour: | 5700K 3-step MacAdam |
| Colour rendering (Ra): | >85 |
| Connected load: | 24V DC ± 10% |
| Connection (connector): | M12 A-coded, end face |
| Degree of protection: | IP67/IP69K |
| Class of protection: | III |
| Glare control: | Microprisms |
| Beam angle (optics): | 100° |
| Operating temperature: | -30 °C - +60 °C (-22 °F - 140 °F) |
| Lamps lifetime: | > 100,000 h (L80/B10) |
| Vibration resistance: | At 10 to 55 Hz (amplitude 0.35 mm (~0,01“)) |
| Shock resistance: | Up to 50 g (~2 oz) |
| Housing material: | aluminium |
| Cover material: | ESG (toughened tempered glass), shatterproof |
| Height [B] x Width [C]: | 30 mm x 96 mm (~1.18" x ~3.78"), frame: 5.6 mm x 132 mm (~0.22" x ~5.2") |
| Length [A]: | 540 mm (~21,26“) |
| Weight (net): | 2200 g (~78 oz) |
| Gross weight: | 2550 g (~90 oz) |
| Risk group (DIN EN 62471): | Free group |
| Markings: | CE, UKCA, ETL Listed (5003529) |
| Dimmable: | Optional via accessories |
| Made in: | Germany |
