UNILED II TUNABLE WHITE Adjustable arm, 3000–6500K, dimmable, luminaire width 548 mm (21.57 in)
UNILED II TUNABLE WHITE Adjustable arm, 3000–6500K, dimmable, luminaire width 548 mm (21.57 in)
€627.50*
| Accessories total price | €0.00 |
In stock 49 in stock
€627.50 *

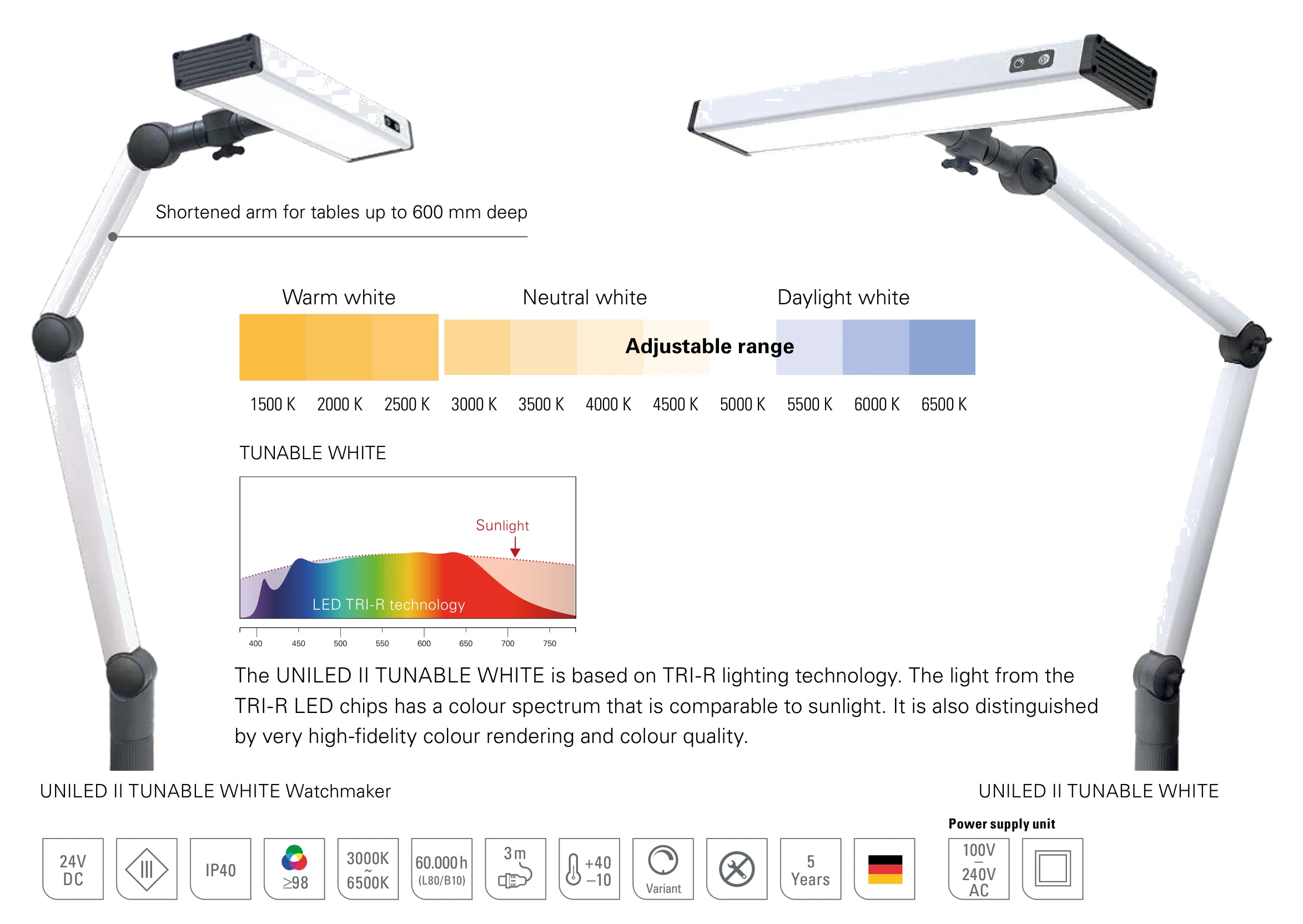

From warm white to daylight – steplessly: The UNILED II TUNABLE WHITE articulated arm luminaire adjusts its colour temperature steplessly from 3000 to 6500 K – the light adapts to task, material and time of day, not the other way round.
With very high colour rendering up to Ra 98, colours appear almost as they do under natural light – the right choice for colour matching, quality control and the finest assembly work.
- Colour temperature on demand: Steplessly adjustable from 3000 to 6500 K – warm light for a pleasant working atmosphere, cool white light for maximum contrast.
- Colours true to the original: Very high colour rendering up to Ra 98 – shades, surfaces and details appear true to life.
- Unpack, clamp, go: Table clamp included – the light mounts directly at the workplace without any accessories.
- Maintenance? Practically never: > 60,000 h (L80/B10) service life – no lamp changes, no unplanned downtime.
Key figures: ~25 W power consumption, connection 24 V DC.
Temperature data
| Operating temperature min. (°C): | -10 °C (+14 °F) |
|---|---|
| Operating temperature max. (°C): | +40 °C (+104 °F) |
Conformity & markings
| WEEE reg. no.: | DE 38003906 |
|---|---|
| REACH: | SVHC < 0.1 % |
| RoHS Directive: | compliant |
| CE marking: | Yes |
| UKCA: | Yes |
Lighting
| Power consumption: | ~25 W |
|---|---|
| Glare control: | opal white |
| Risk group (DIN EN 62471): | Free group |
| Illuminant: | SUNlike LED |
| Lamp luminous flux: | 2418 lm (6500 K) / 2244 lm (3000 K) |
| Lamp luminous efficiency: | ~98 lm/W (6500K) / ~91 lm/W (3000K) |
| Lamps lifetime: | > 60.000 h (L80/B10) |
| Dimmable: | Internal dimmer with memory function |
| Beam angle (optics): | 100° |
| Light colour: | Tunable white |
| Colour temperature: | adjustable 3000–6500 K |
| Colour rendering (CRI): | Ra ≥ 80, Ra ≥ 85, Ra ≥ 90 |
| Light distribution: | Direct |
Electrical data
| Class of protection: | III |
|---|---|
| Power supply: | Included external PSU 100-240V AC |
| Connection PSU: | EURO plug to M12 connector |
| Connected load PSU: | 110-240V AC |
| Connection (connector): | M12 A-coded |
| Supply voltage: | 24V DC ± 10% |
Dimensions & housing
| Housing material: | aluminium / plastics |
|---|---|
| Cover material: | plastic soft |
| Type: | LED adjustable arm light |
| Weight (net): | 2600 g (~92 oz) |
| Gross weight: | 4300 g (~152 oz) |
| Mounting accessories: | Included table clamp |
| Length articuleted arms: | 2x 400 mm |
| Head width [A]: | 548 mm (~21,57“) |
| Degree of protection (IP): | IP40 |
Further technical data
| Order number: | 120700-02 |
|---|---|
| Model: | UNILED II Articulated Arm TW |
| Made in: | Germany |
| Feature: | TUNABLE WHITE: very high colour rendering, continuously adjustable light colour from 3000 K up to 6500 K |
Energy efficiency
| Contained light source(s) – energy efficiency class: | G |
|---|---|
| EPREL registration number(s): | 1246924 |
Warranty
| Warranty: | 5 years from delivery |
|---|---|
| Spare parts and repair: | Offered for up to 15 years after delivery |
Info & explanations
ⓘ What does the IP rating mean?
ⓘ What does the lamp lifetime (L/B) mean?
Warranty statement
General
LED2WORK GmbH grants its customers a warranty against defects in material, design and manufacture. It applies in addition to the statutory rights in respect of defects and does not restrict them. The warranty covers only products manufactured by LED2WORK itself; merchandise such as external power supplies and connecting cables is not covered.
Warranty period
We grant a warranty of five (5) years from the date of delivery. This requires that the product has been installed in accordance with the technical specifications and operating instructions, connected by qualified specialist personnel and used as intended.
Preconditions
Please report the defect within the warranty period and have your proof of purchase showing the date of purchase ready. If the customer claims a material defect, the burden of proof that the device was already defective on receipt of the goods lies with the customer.
Warranty service
During the warranty period, defects and faults occurring on the device will be remedied free of charge, provided they are demonstrably due to defects in material, workmanship or design – at our discretion by repair or replacement. Please return goods complained about only after prior agreement with us.
15 years of spare parts and repair
For up to 15 years from the date of delivery we provide, in the event of a defect and against a paid order, spare parts, repair of the product or delivery of a new product that is mechanically and electrically comparable.
Exclusions
The warranty does not cover defects caused by wear, negligent use or use for purposes other than those intended. Also excluded is damage caused by the use of unsuitable cleaning agents as well as damage resulting from interventions or repairs not carried out by us or by persons authorised and qualified by us. Further claims, in particular for compensation for damage not occurring on the LED light itself, are excluded.
Relation to statutory rights
This warranty applies in addition to the statutory liability for defects and does not restrict it. For newly delivered goods used properly, the liability period for merchants is 36 months after the transfer of risk; details are set out in our general terms and conditions.
The full warranty conditions of LED2WORK GmbH are authoritative. Report a warranty claim: sales@led2work.com · +49 7231 44920-00
