Machine light CENALED SPOT Einbau DC (recessed light), optics 15°

€141.50 *

Prices plus VAT plus shipping costs

soon available again

  • 121011-05
  • 4260556625744
The CENALED SPOT DC is a high-intensity LED luminaire with a high degree of protection - suitable... more

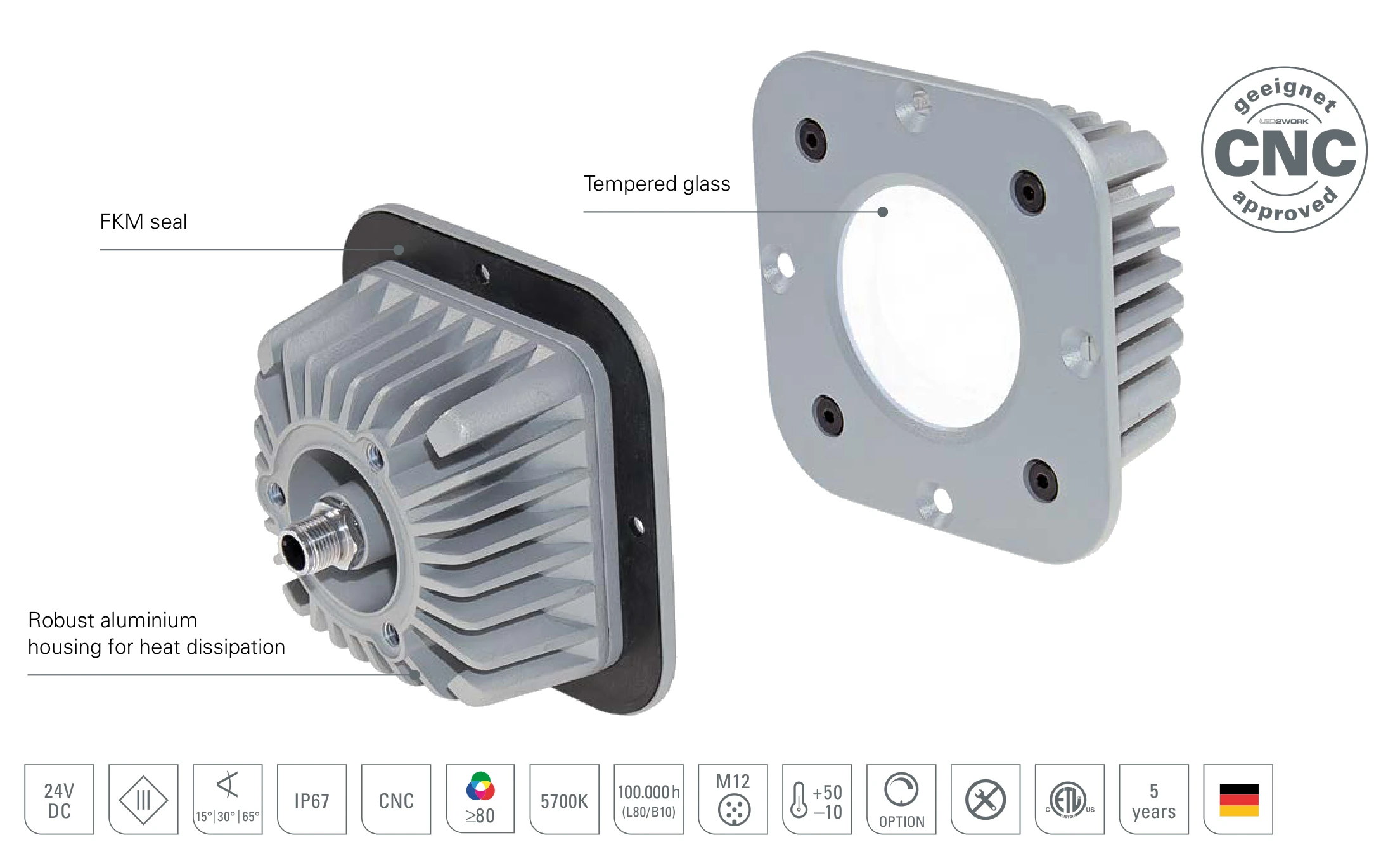

The CENALED SPOT DC is a high-intensity LED luminaire with a high degree of protection - suitable for original equipment manufacturers or for retrofitting in the machine sector. Thanks to IP67 - i.e. dust and water protected - and robust aluminum housing with strong safety glass, the luminaire can also be used in areas where the going gets rough - such as in automatic drilling machines and CNC or milling machines. The compact luminaire is available as a recessed and surface-mounted version.  Depending on the variant, an area can be illuminated with pinpoint accuracy or over a medium area. Depending on requirements, both versions are available with 15°, 30° and 65° optics. The luminaire - whether recessed or surface-mounted - is connected via an A-coded M12 plug connection with reverse polarity protection.

The CENALED SPOT Einbau DC is mounted with four M5 countersunk screws in a mounting shaft or opening measuring at least 81 mm x 81 mm. A supplied gasket behind the luminaire bezel seals the luminaire to the rear.
Order number: 121011-05
Model: CENALED SPOT Einbau
Type: LED recessed luminaire
Illuminant: High Power LED
Power consumption: ~8,5 W
Lamp luminous flux: 1120 lm
Lamp luminous efficiency: 134 lm/W
Light distribution: direct
Light colour: neutral white (5000K)
Connected load: 24V DC ± 10%
Connection (connector): M12 A-type encoded
Degree of protection: IP67
Class of protection: III
Beam angle (optics): 15°
Operating temperature: -10... +50 °C (14… 122 °F)
Colour rendering (Ra): >80
Lamps lifetime: > 60.000 h (L80/B10)
Housing material: aluminium (powder-finished)
Cover material: safety glass 4 mm (0,16“), crack-resistant
Height [B] x Width [C]: installation body: ~80 mm x 80 mm (~3,15“ x 3,15“), instal-lation depth >60 mm (>2,36“), cover ~105 mm x 105 mm, ~5 mm (~4,13“ x 4,13“ x 0,2“) built-up
Weight (net): 450 g (~16 oz)
Gross weight: 550 g (~19 oz)
Risk group (DIN EN 62471): free group
Markings: CE, UKCA, ETL Listed (5003526)
Dimmable: via optional accessory
Made in: Germany
Feature: 15° optics for spotlight
Note: seal included in delivery; fastening via 4 countersunk boltsM5
